Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33
Specifications
Brand Name :
SKF, TNT, YGB, OEM
Model Number :
22320
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standarded
Name :
22320 Spherical Roller Bearing
Structure :
Thrust
Number of Row :
Single Row
Type :
Roller
Seals Type :
OPEN\Z\ZZ\RS\2RS
Precision rating :
P0 P6 P5 P4 P2
Material :
Chrome steelGcr15, stainless steel
Service :
OEM Customized Services
Description

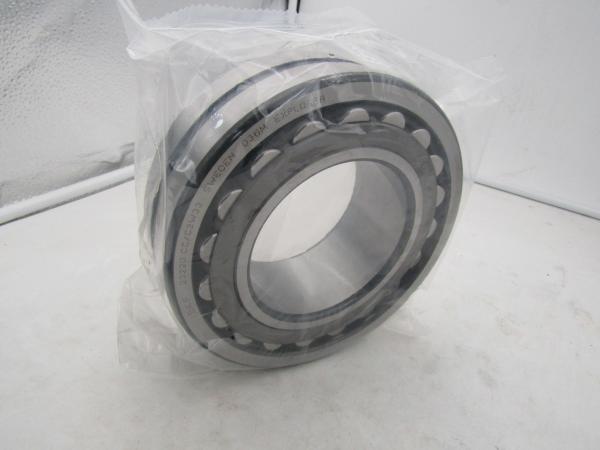

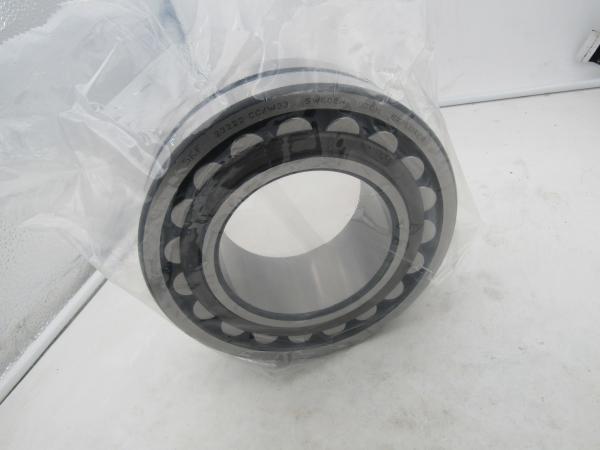

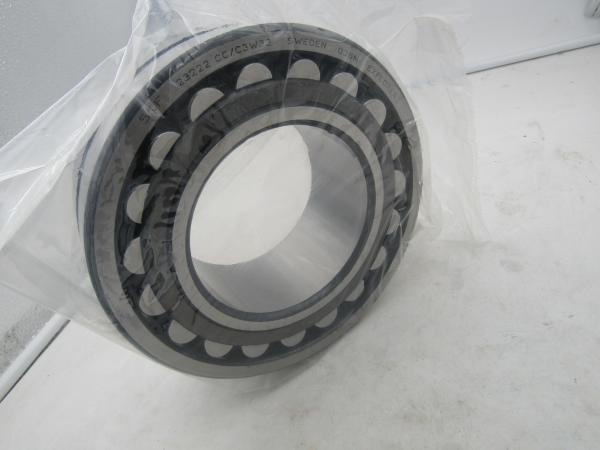

Conveying machinery spherical roller bearing 23218 23220 23222 MB C3 W33

Description:

Name bearing(spherical roller bearing)
ALL Model 230***222***223***
Material GCr15SiMn, GCr15, G20Cr2Ni4A,9Cr18
Certificate ISO9001:2008
Precision P0, P6, P5, P4, P2
ID Size: 20mm-850mm
Clearance C0,C1,C2,C3,C4,C5 etc.
Seals Type RS, 2RS, R2, Z, 2Z, 2RZ, etc
Basic Rated Load (KN) A. Dynamic: 31.5-8750
B. Static: 31.2-22200
Limit Speed(r/min) A. Grease 6000-75
B. Oil 7500-95
Mass bearing 6.85 kg
Features Low price, high speed, long life
Application widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized types of machinery,machine spindle applications and are used for cool and hot mills.
Delivery Time 2-5 days
Package cardboard package, pallet, wooden case or according to the requirement of the customers
Price FOB, CIF

Description of spherical roller bearing

spherical roller bearing
1.OEM
2.all brands supplied
3.prompt delivery
4.20 years experience

Details

1.self-aligning roller bearings with two rows rollers, are mainly used to bear radial load, but also can take an axial load in either direction. this kind of bearing has a high radial load capacity, especially suitable for working heavy loads or vibration, but unable to withstand pure axial load. good aligning performance can compensate for the coaxiality error.
2.mainly purposes: papermaking machinery, speed reducer, railway vehicle axle, roller mill, crusher, vibrating screen, printing machinery, woodworking machinery,self-aligning bearing with the vertical unit, etc.
3.self-aligning roller bearings can be divided into, cylindrical hole, tapered hole.
4.for the self-aligning bearings, a large number of bearings generally use mechanical or hydraulic pressure method for installation.

The Drawing:

Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33

Conveying Machinery Spherical Taper Roller Bearing 23218 23220 23222 MB C3 W33

Relatives:

Bearing No. Size(mm)
New Old d D T E
29412 9039412 60 130 42 38
29413 9039413 65 140 45 42
29414 9039414 70 150 48 44
29415 9039415 75 160 51 47
29416 9039416 80 170 54 50
29317 9039317 85 150 39 50
29417 9039417 180 58 54
29318 9039318 90 155 39 52
29418 9069418 190 60 56
29320 9039320 100 170 42 58
29420 9039420 210 67 62
29322 9039322 110 190 48 64
29422 9039422 230 73 69
29324 9039324 120 210 54 70
29424 9039424 250 78 74
29326 9039326 130 225 58 76
29426 9039426 270 85 81
29328 9039328 140 240 60 82
29428 9039428 280 85 86


Why Choose Us

1). World-Class Bearing: We provide our customer with different kinds of Standard and Non-standard World-Class Bearing

2). Technical Testing: Company will check the products one by one before sending you.

3). Technical Assistance: Company can provide you all related technical data if you needed

4). Quick Delivery: You will get your goods within 7 working days after your payment.

5). After-sale service: we support 24 Hours after-sale service

displacement on the radial clearance.
