High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle
Specifications
Brand Name :
YGB,SKF,FAG, OEM
Model Number :
7212
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standard
Name :
7212 BECBP Angular contact ball bearings
Size(mm) :
60x110x22
Material :
Chrome Steel
Seals Type :
OPEN,LLU,ZZ
Precision Rating :
P0 P5 P6
Noise Level :
Z1,Z2,Z3
Description

High Precision 7212 Angular Contact Ball Bearing For Machine Spindle

For the 7212b bearing, there are different precision, if you used for spindle machinery, quality is high, the grade is P4 P5 P2 standard for you. Welcome to the inquiry!

Quick Details:

Product Name High Precision Angular Contact Bearings 7212 Ball Bearing
Material Chrome steel
Size 60*110*20mm
Brand NSK
Basic dynamic load rating 61 kN
Basic static load rating 50 kN
Reference speed 7000 r/min
Limiting speed 7500 r/min
Precision level P0/ P6 /P5
Usage Industry Machine, auto, motorcycle, power tools

Deep Groove Ball Bearing Features:

1. Deep groove ball bearings are the most common bearing type. It has simple, easy to use.

2. They accommodate both radial and axial loads in both directions and are suitable for high rotational speeds.

3. Our deep groove ball bearings have many types. They can meet all the needs.

4. The suitable lubricant in accordance with the using environments of the bearings or the customer's requirements.

5. Deep Groove Ball Bearings:low-noise, high-speed, suitable for the motor bearings and automotive bearing.

6. The cage of Deep Groove Ball bearings is Steel Stamping Ribbon Cage,and the large bearing is Cart System Metal Solid Cage.

7. It widely used in automobiles, tractors, machine tools, motors, pumps, agricultural machinery, textile machinery and so on.

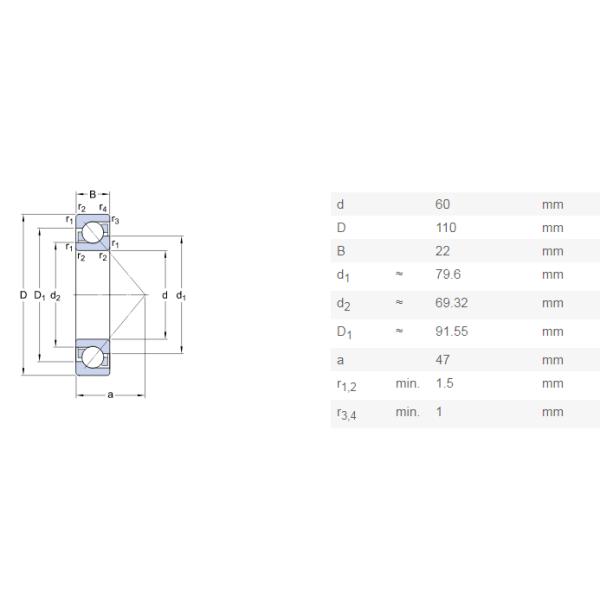

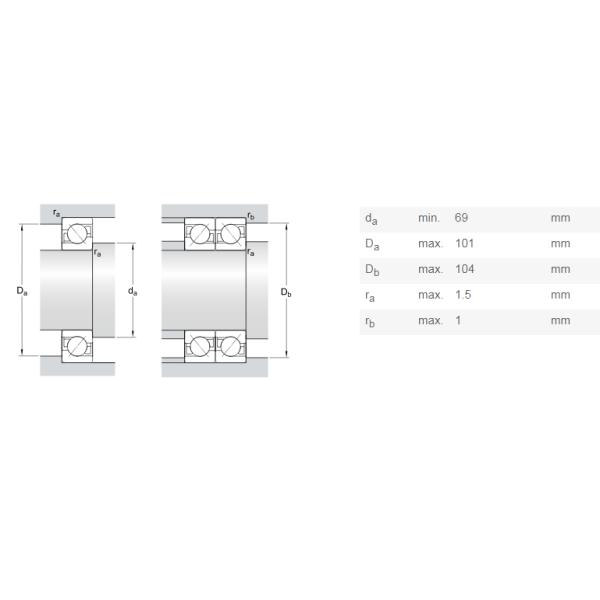

The drawing:

High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle

High Precision 7212 Axial Angular Contact Ball Bearings For Machine Spindle

According to bearing model number has five kinds:


High precision:30TAB06DF 50BNR10S 55BNR10S 60BNR10S 65BNR10S 70BNR10S 75BNR10S 80BNR10S
85BNR10S 90BNR10S 95BNR10S 100BNR10S 105BNR10S 110BNR10S 120BNR10S 130BNR10S 140BNR10S
150BNR10S 160BNR10S 170BNR10S 180BNR10S 190BNR10S 200BNR10S
Single row:8XX,79XX,70XX,72XX,73XX,74XX
Miniature:70X
Double row:52XX,53XX,32XX,33XX,LD57,LD58
Four-point contact:QJ2XX,QJ3XX

Relatives:

Model No. d(mm) D(mm) H(mm)

grease lubrication

(r/min)

oil lubrication

(r/min)

 W(kg)
7204C 20 47 14 24000 32000 0.112
7204AC 20 47 14 17000 22000 0.112
7204B 20 47 14 13000 17000 0.112
SN7204J 20 47 14 13000 18000 0.0946
7204AC/DB 20 47 28 14000 17000 0.224
7204AC/DT 20 47 28 14000 17000 0.224
7204B/DB 20 47 28 10000 14000 0.224
7204B/DF 20 47 28 10000 14000 0.224
7204B/DT 20 47 28 10000 14000 0.224
7204C/DB 20 47 28 19000 26000 0.224
7204C/DF 20 47 28 19000 26000 0.224
7204C/DT 20 47 28 19000 26000 0.224
... ... ... ... ...
