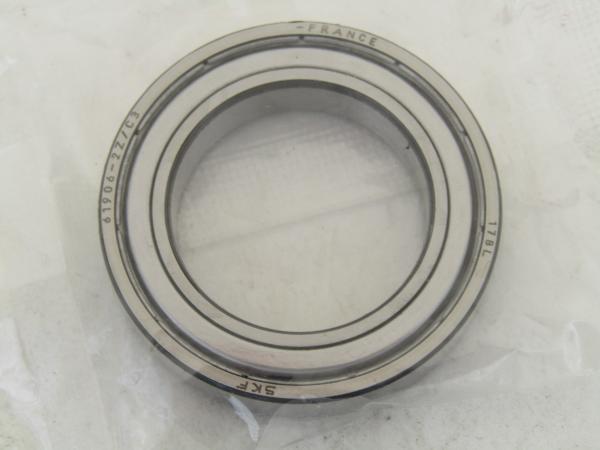

30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings
30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings
30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings
30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings
Specifications
Brand Name :
YGB,SKF,TNT, OEM
Model Number :
61906
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Name :
Sealed Ball Bearings 61906
Type :
Deep groove ball bearings
Size （ inches ） :
30x47x9 mm
Precision Rating :
P0 P6 P5 P4 P2
Certificate :
ISO9001:2008
Service :
OEM Customized Services
Description

30mm Deep Groove Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings

Description :

Attribute Value
Inside Diameter 30mm
Outside Diameter 47mm
Ball Bearing Type Deep Groove
Race Width 9mm
End Type Sealed
Number of Rows 1
Static Load Rating 4.55kN
Material Steel
Ball Material Steel
Cage Material Steel
Race Material Steel
Race Type Plain
Dynamic Load Rating 7.28kN
Bore Type Parallel

The drawing:

30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings

30mm Deep Groove Thrust Ball Bearing 47mm O.D 61906-2RS1 Sealed Ball Bearings

61906-2RS (6906 2RS) Sealed Thin Section Bike Bearing-Metric 30x47x9 - Budget Quality

Deep Groove Ball Bearings are the most common bearing type found in a wide variety of applications. Versatile and robust they are available in a wide range of sizes and options including seals, shields and special clearance for high-speed applications. The main types are:

Open - Bearing without seals or shields, suitable for applications where lubricant will constantly flow through them i.e. gearboxes.
Metal Shields (ZZ, 2Z) - Bearings fitted with steel shields and lubricated for life.
Rubber Seals (2RS, 2RSR, 2RSH) - Bearings fitted with steel reinforced rubber contact seals which provide a better seal but add friction so are unsuitable for high-speed applications, lubricated for life.

Deep Groove Ball Bearings


Deep groove ball bearings are versatile. They are simple in design, non-separable, suitable for high speeds and are robust in operation, requiring little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants, and sizes.
