Spherical Roller Bearings 23056CC W33 For Reduction Gear GCr15 AISI52100 100Cr6 280 x 420 x 106 mm

Description:

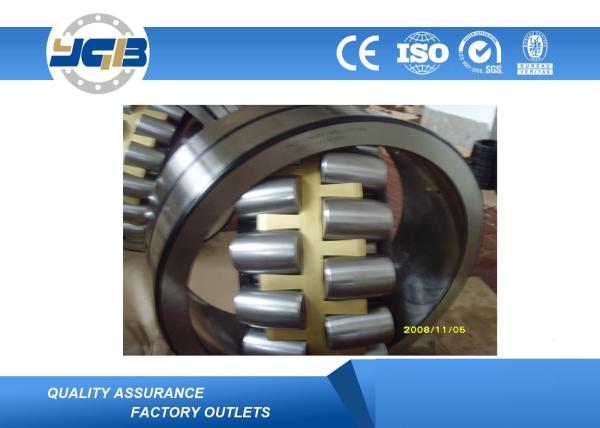

Photo:

Specification:

1. High precision bearings

2. ISO standard bearing

3. High quality and competitive price

4. Many famous brands can be available

5. Low noise and long life

Drawing:

The installation:
The aligning roller bearing is equipped with a drum roller between the inner ring with two raceway and the outer ring with the spherical raceway. The curvature center of the outer ring raceway surface is the same as the bearing center, so it has the same regulating function as the automatic centering ball bearing. In the case of shaft and shell deflection, the load can be automatically adjusted and axial load in two directions.Radial load capacity, suitable for heavy load, impact load. The inner diameter of the inner ring is the bearing with the taper hole, which can be installed directly. Or use a tight set sleeve, remove the cylinder to install on the cylindrical shaft. The retainer is made of steel sheet stamping retainer, polyamide forming retainer, and copper alloy car.
For self-aligning bearings, an intermediate mounting ring is used to prevent the outer ring from tilting and rotating when the bearing with the shaft is loaded into the housing shaft hole. It should be remembered that some sizes of self-aligning ball bearings have ball bearings that protrude from the side of the bearing, so the middle mounting ring should be recessed to prevent damage to the ball bearings. A large number of bearings are generally mechanical or hydraulic pressure method for installation.
For separable bearings, the inner and outer rings can be installed separately, thus simplifying the installation process, especially when both inner and outer rings need interference fit.When putting the shaft with the inner ring in place into the bearing box with the outer ring, care must be taken to check whether the inner and outer rings are correctly aligned to avoid scratches on the bearing raceway and rolling parts.If cylindrical and needle roller bearings have inner ring without flange retaining edge or inner ring with flange edge on one side, the mounting sleeve is recommended.The outer diameter of the sleeve shall be equal to the inner ring raceway diameter F, and the tolerance standard for machining shall be d10.Pin roller bearings with stamping outer ring are best installed by mandrel.

Packaging & Shipping:

Packaging Details

1. Industry packaging: Plastic tube + Carton + pallet
2. Commercial packaging: Single color box+Carton+pallet
3. According to the requirements of customers'

FAQ:

Q: Why do we choose your company?

A: We always insist on quality firstly. We have our bearing factory, therefore we have an advantage in quality control and price.

Q: What is the delivery time?

A: Most of the bearing we have stock. For a small quantity, we will arrange delivery within 3 days.

Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?

A: Yes, we can send bearing samples to check the quality first.

Other Bearing Type

1. Deep groove ball bearing

2. Cylindrical roller bearing

3. Taper roller bearing

4. Spherical roller bearing

5. Angular contact ball bearing

6. Self-aligning ball bearing

7. Needle roller bearing

8. Thrust ball/roller bearing

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
