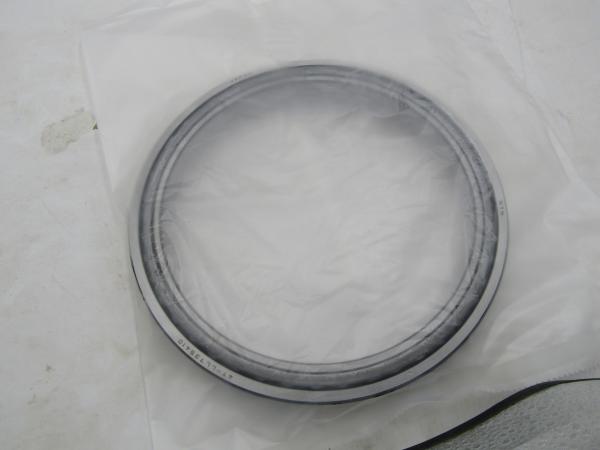

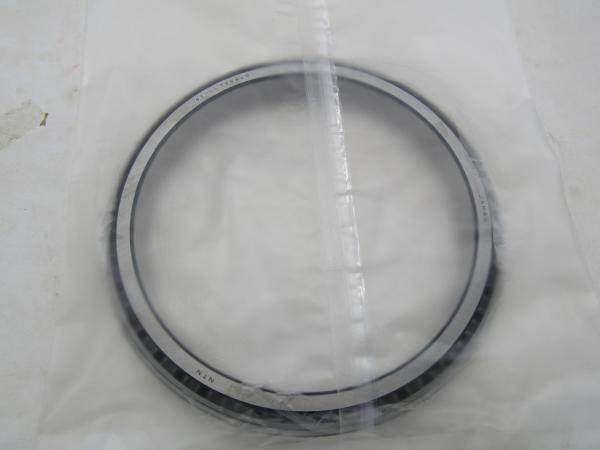

Tapered roller bearings 4T-LL735449/LL735410 177.8*215.9*20.6mm

Product Description

The Drawing:

The single-row tapered roller bearing has an outer ring, an inner ring and a set of tapered rollers, which is an inner ring component formed by a basket-shaped cage. The outer ring can be separated from the inner ring component. According to the ISO standard for external dimensions of tapered roller bearings, the outer ring or inner ring component of any standard tapered roller bearing should be able to achieve internationality with the outer ring or inner ring component of the same model. exchange. That is to say, in addition to the outer dimensions and tolerances of the same type of outer ring must comply with ISO492 (GB307) regulations, the cone angle and cone diameter of the inner ring components must also meet the relevant regulations for interchange.
Generally, the tapered angle of the outer ring raceway of a single-row tapered roller bearing is between 10 ° and 19 °, which can simultaneously bear the combined action of axial load and radial load. The larger the cone angle, the greater the ability to withstand axial loads. Bearings with a large tapered angle, with a postcode plus B, with a tapered angle between 25 ° and 29 °, can bear large axial loads. In addition, single-row tapered roller bearings can adjust the amount of clearance during installation.
The outer ring (or inner ring) of a double-row tapered roller bearing is a whole. The two small inner end faces of the inner ring (or outer ring) are close to each other, and there is a space in the middle. The clearance is adjusted by the thickness of the spacer. The thickness of the spacer can also be used to adjust the pre-interference of the double-row tapered roller bearing.
Four-row tapered roller bearings, the performance of this bearing is basically the same as double-row tapered roller bearings, but the radial load is greater than double-row tapered roller bearings, the limit speed is slightly lower, mainly used in heavy machinery.
Multi-sealed double and four-row tapered roller bearings, ZWZ provides long-life, multi-sealed double and four-row tapered roller bearings. The bearing is individually and completely new designed, and the traditional design method of fully sealed bearings is changed. A new type of sealing structure combining sealing and dustproof is adopted to improve the sealing effect and sealing performance. Compared with open structure bearings, multi-sealed double-row and four-row tapered roller bearings have a 20% to 40% longer life and an 80% reduction in lubricant consumption.

Application

Application
Excavator specialized angular ball bearing is used for the application of excavator machinery. This kind of angular contact ball bearing has a big contact angle(40 degrees), so it can undertake big axial load, and also axial radial allied load. Moreover, it can carry heavier load capacity than the same size bearings because it has more balls inside. It is widely used for all imported excavator.

Quality Assurance

As per the regulation of three-dimensional management and multiple checks, each product was inspected by the producer, inspector, inspection development and quality development laboratory, especially to the important inspection items and precision inspection item. In order to process the leading technology, we implement the quality control system and establishes a technical and strict inspection team.
