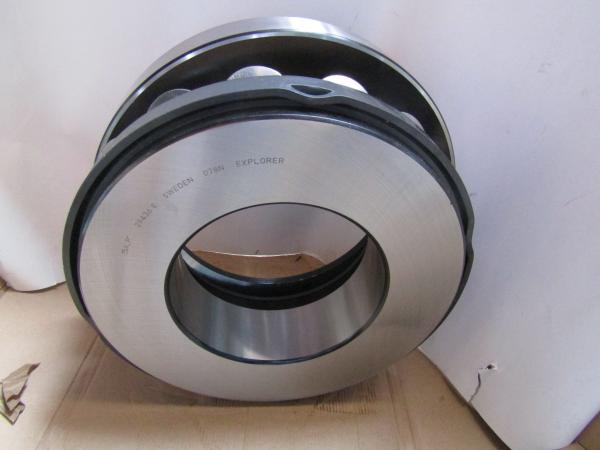

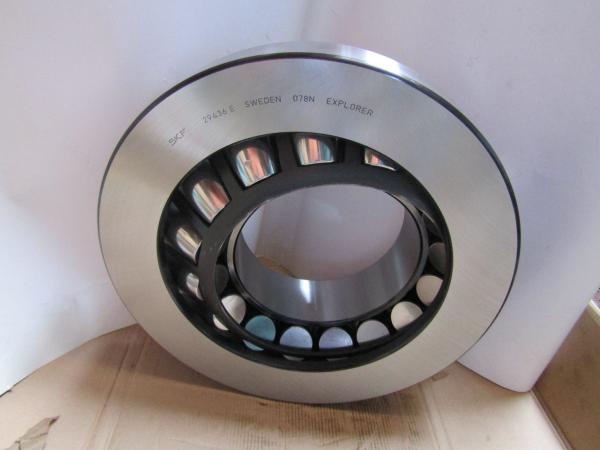

Bearing 180x360x109 mm Thrust Bearing High-Quality Thrust Spherical Roller Bearing 29436E

Quick Details:

Spherical roller bearing

The aspherical roller bearing is a rolling-element bearing that permits rotation with low friction and permits angular misalignment. Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned with respect to the outer ring. Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The center point of the sphere in the outer ring raceway is at the bearing axis.

Feature:

1. Separable design
Shaft washer, housing washer, cylindrical roller, and cage thrust assembly can be mounted separately.
2. Extended bearing service life
To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the raceway and rollers.

Spherical roller thrust bearings contain a large number of asymmetrical barrel-shaped rollers, inclined so steeply that the bearing accommodates high axial loads in addition to considerable radial loads at relatively high rotational speeds.

Spherical roller thrust bearings are separable, which allows the shaft washer, cage, and roller assembly to be mounted separately from the housing washer. Due to their internal design, these bearings need to be lubricated with oil, except under extremely low speeds where grease lubrication is adequate.

Application Area:

The thrust roller bearings are used in a variety of applications. Examples include Aerospace, Construction
Machine tools, Marine, Mining, Railways and so on.

Drawing:

Product Catalogue:

Advantages

Thrust spherical roller bearings are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.
