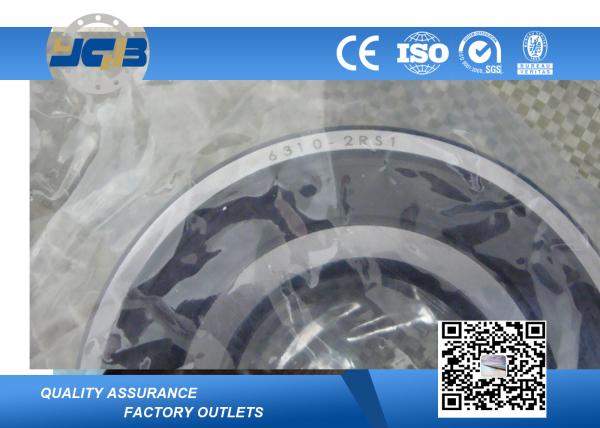

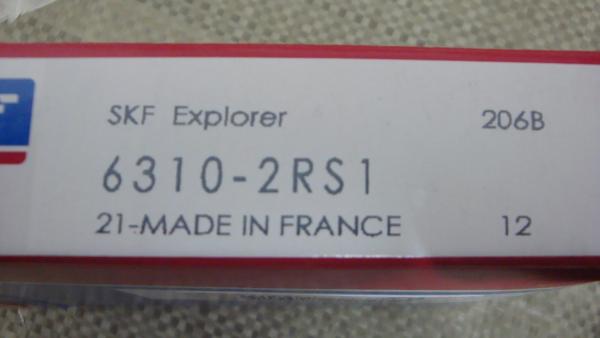

6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing
Specifications
Brand Name :
YGB,SKF,TNT, OEM
Model Number :
6310-2RS1
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Type :
Deep groove ball bearings
Size :
50 x 110 x 27mm
Seals Type :
OPEN ZZ 2RS RS
Precision Rating :
P0 P6 P5 P4 P2
Cage :
Steel
Certificate :
ISO9001:2008
Service :
OEM Customized Services
Description

Radial Ball Bearings 6300 Series 6310 2RS1 C3 SKF Deep Groove Bearing - 50 x 110 x 27mm

Description :

Model 6310-2RS1
Bearing type: Deep groove ball bearings
Row 2
63 Medium series
2RS1 Rubber Seals on Both Sides of Bearing
ID*OD*W (mm) 50x110x27mm
Weight(kg) 1.12
Seals of the shields Rubber Seals on Both Sides of Bearing
Basic dynamic load ratings/C 65 kN
Basic static load ratings/C0 38 kN
Fatigue load limit 1.6 kN
Reference speed /
Limiting speed 4300 rmp/min
Clearance Standard
Lead time Stock or 15-30days
Port Shanghai

The Drawing:

6300 Series 6310 2RS1 C3 Radial Ball Bearing SKF Deep Groove Bearing

Series Models:

Basic Nominal Bearing Dimensions Preferred Shoulder Diameters
Bearing d D B,C r (min) da (min) da (max) Da (max)
No. mm mm mm mm mm mm mm
604 4 12 4 0.2 5.4 6.6 10.6
605 5 14 5 0.2 6.6 7.4 12.4
606 6 17 6 0.3 8 8.6 15
607 7 19 6 0.3 9 10.4 17
608 8 22 7 0.3 10 12.2 10
609 9 24 7 0.3 11 13.1 12
6000 10 26 8 0.3 12 13.5 24.1
6001 12 28 8 0.3 14 16 26
6002 15 32 9 0.3 17 19 30
6003 17 35 10 0.3 19 21.5 33
6004 20 42 12 0.6 24 26 38
6005 25 47 12 0.6 29 30.5 43
6006 30 55 13 1 35 37 50
6007 35 62 14 1 40 42 57
6008 40 68 15 1 45 47.5 63
6009 45 75 16 1 50 53.5 70
6010 50 80 16 1 55 58.5 75
6011 55 90 18 1.1 61.5 64.2 83.5
6012 60 95 18 1.1 66.5 69.1 88.5
6013 65 100 18 1.1 71.5 74 93.5
6014 70 110 20 1.1 76.5 80.5 103.5
6015 75 115 20 1.1 81.5 85.6 108.5
6016 80 125 22 1.1 86.5 91.5 118.5
6017 85 130 22 1.1 91.5 97 123.5
6018 90 140 24 1.5 98 102 132
6019 95 145 24 1.5 103 109 137
6020 100 150 24 1.5 108 110 142
6021 105 160 26 2 114 119 151
6022 110 170 28 2 119 126 161
6024 120 180 28 2 129 136 171
6026 130 200 33 2 139 148 191

Common Options
Z : One Shield
ZZ : Two Shields
RZ : One Non-Contact Seal
2RZ : Two Non-Contact Seals
RS : One Contact Seal
2RS : Two Contact Seals
RS1 : One Tight sealing type
2RS1 : Two Tight sealing type
C0 : Normal Internal Clearance
C3 : Greater Than Normal
EMQ : Electric Motor Quality
