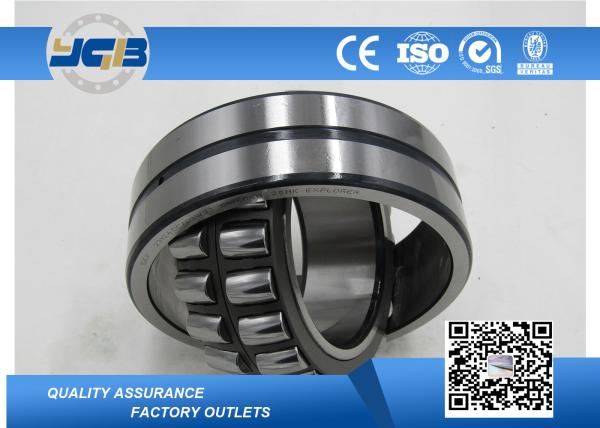

Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33
Specifications
Brand Name :
SKF, TNT, YGB, OEM
Model Number :
23124-2CS5/VT143 Bearing
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standarded
Number of row :
Double Row
Precision rating :
P0 P6 P5
Seals type :
Open
Structure :
Spherical
Material :
Chrome Steel
Size(mm) :
120*200*62
Feature :
Long Life Low Noise
Description

Original Double Rows SKF 120x200x62 mm spherical roller bearing 23124CC/C3W33

Product descriptoion:

Structure:

 Bearing Material:
Spherical Chrome steelGcr15,stainless steel
Type: Cage Material:
Roller brass, steel
Brand Name: net weight:
skf 7.63kg
Bore Size: Lubrication:
0 - 120 mm Grease and oil
Outside Diameter: Hardness:
0 - 200 mm HRC60-65
Model Number: Clearance:
23124 C2,C3,C4
Precision Rating: Bore type:
P0 P6 P5 P4 P2 Round
Seals Type: Sample:
Open Available
Number of Rows: Operating Temperature Range:
Double Row Maximum of +390 °F
Place of Origin: Application::
Sweden Mining

Calculation data:

Basic dynamic load rating C 534 kN
Basic static load rating C0 695 kN
Fatigue load limit Pu 71 kN
Reference speed 2600 r/min
Limiting speed 3400 r/min
Calculation factor e 0.28
Calculation factor Y1 2.4
Calculation factor Y2 3.6
Calculation factor Y0 2.5

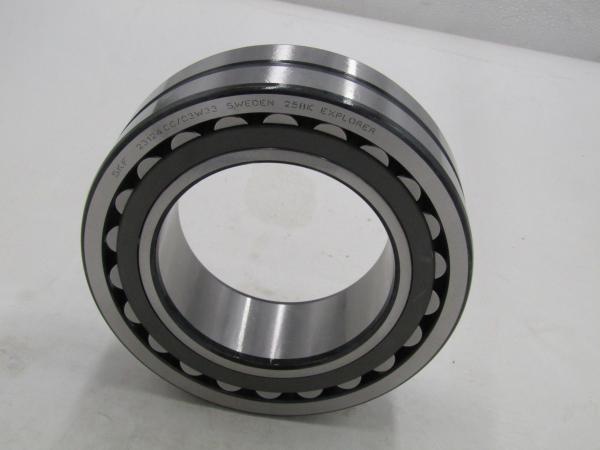

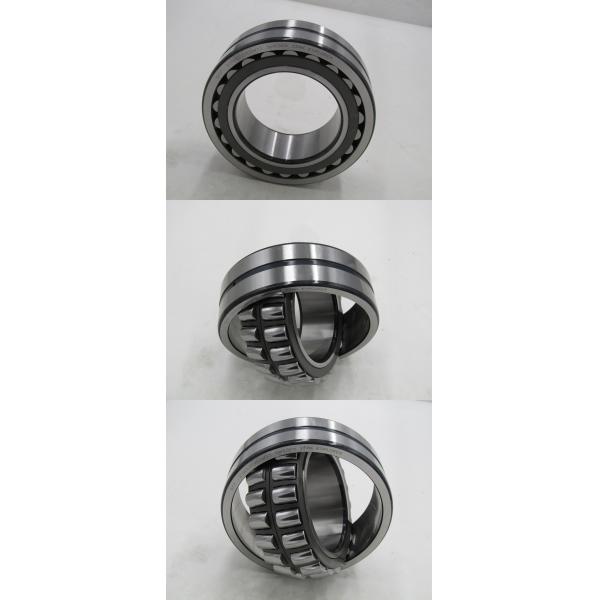

Detail Images:

Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33

Bearing Advantage:

1).Excellent and high-quality control

2).Prompt delivery

3).Competitive price

4). Small order accepted

5). Customers' drawing or samples accepted

6).OEM service

Features:

1. SKF Spherical roller bearings with two rollers, mainly bear radial load but also can withstand axial load in either direction.

2. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load.

3. The outer ring raceway is a spherical shape, therefore the good performance of its self-aligning can compensate concentricity error.
4. It has a good Angle of raceway and aligning performance.

5. Good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.

Contact us:

YGB Bearing Co., Ltd is an integrated and modern enterprise engaged in the R&D, manufacture, and sales of high-quality bearings. We are the Bearing experts serving the OEM throughout China as well as the international markets, such as deep groove ball bearing, spherical roller bearing and tapered roller bearing as well as other kinds of bearings.

If needs be free to contact us.
