High Precision Chrome Steel Thrust Ball Bearing F4-9M Size 4*9*4mm Radial Thrust Bearing

Specifications

Brand Name :

YGB,OEM,SKF,NTN

Model Number :

F4-9M

Certification :

ISO9001:2008

Place of Origin :

China，Wuxi

MOQ :

50 pcs

Price :

negotiation

Payment Terms :

T/T , L/C

Supply Ability :

1,000,000pcs per month

Delivery Time :

within 5- 10 working days after received your payment

Packaging Details :

Packed in carton firstly,and then reinforced with wooden case for outer packing

Number of row :

Single Row

Material :

Chrome Steel

Seals type :

Open

Structure :

Thrust

Precision rating :

P0 P6 P5 P4 P2

Type :

Ball

Description

High Precision Chrome Steel Thrust Ball Bearing F4-9M Size 4*9*4mm Radial Thrust Bearing

Miniature bearings are one kind of thrust ball bearing, usually, we call deep groove ball bearings as small ball bearings when the inner diameter range from 1mm to 8 mm, Metric and imperial sizes miniature bearings are included. These miniature bearings have a greatly wide range of applied fields including Skateboard, RC Car, Dental, Fishing Reel, Yoyo, Instrument, Electric Motor, Medical and so on.

Model list as below:

Type	Inner Diameter	Outer Diameter	Flange Diameter	Width		Flange Width		Load Rating Cr(N)	Load Rating Cor(N)	Max Speed
			Flange Diameter	Width		Flange Width				Grease	Oil
			OPEN/ZZ	OPEN	ZZ	OPEN	ZZ			*1000rpm
F682ZZ	2	5	6.1	1.5	2.3	0.5	0.6	169	50	85	100
MF52ZZ		5	6.2	2	2.5	0.6	0.6	169	50	85	100
F692ZZ		6	7.5	2.3	3	0.6	0.8	330	99	75	90
F682XZZ	2.5	6	7.1	1.8	2.6	0.5	0.8	209	74	71	80
F692XZZ	2.5	7	8.5	2.5	3.5	0.7	0.9	389	129	63	75
MF63ZZ	3	6	7.2	2	2.5	0.6	0.6	209	74	71	80
F683ZZ		7	8.1	2	3	0.5	0.8	311	112	63	75
MF83ZZ		8	9.2	2.5	3	0.6	—	395	141	60	67
F693ZZ		8	9.5	3	4	0.7	0.9	558	180	60	67
MF93ZZ		9	11.2/11.6	2.5	4	0.6	0.8	571	189	56	67
F603ZZ		9	10.5	3	5	0.7	—	571	189	56	67
F623ZZ		10	11.5	4	4	1	1	631	219	50	60
MF74ZZ	4	7	8.2	2	2.5	0.6	0.6	255	108	60	67
MF84ZZ		8	9.2	2	3	0.6	0.6	395	141	56	67
MF684ZZ		9	10.3	2.5	4	0.6	1	641	227	53	63
MF104ZZ		10	11.2/11.6	3	4	0.6	0.8	711	272	48	56
F694ZZ		11	12.5	4	4	1	1	957	350	48	56
F604ZZ		12	13.5	4	4	1	1	957	350	48	56
F624ZZ		13	15	5	5	1	1	1301	488	40	48
F634ZZ		16	18	5	5	1	1	1340	523	36	43
MF85ZZ	5	8	9.2	2	2.5	0.6	0.6	218	90	53	63
MF95ZZ		9	10.2	2.5	3	0.6	0.6	431	169	50	60
MF105ZZ		10	11.2/11.6	3	4	0.6	0.8	431	169	50	60
MF115ZZ		11	12.5	—	4	0.8	1	716	282	45	53
F685ZZ		11	12.5	3	5	0.8	1	716	282	45	53
F695ZZ		13	15	4	4	1	1	1077	432	43	50
F605ZZ		14	16	5	5	1	1	1329	507	40	50
F625ZZ		16	18	5	5	1	1	1729	675	36	43
MF106ZZ	6	10	11.2	2.5	3	0.6	0.6	496	218	45	53
MF126ZZ		12	13.2/13.6	3	4	0.6	0.8	716	295	43	50
F686ZZ		13	15	3.5	5	1	1.1	1082	442	40	50
F696ZZ		15	17	5	5	1.2	1.2	1340	523	40	45
F606ZZ		17	19	6	6	1.2	1.2	2263	846	38	45
F626ZZ		19	22	6	6	1.5	1.5	2336	896	32	40
MF117ZZ	7	11	12.2	2.5	3	0.6	0.6	455	202	43	50
MF137ZZ	7	13	14.2/14.6	3	4	0.6	0.8	541	276	40	48
MF128ZZ	8	12	13.2/13.6	2.5	3.5	0.6	0.8	543	274	40	48
MF148ZZ		14	15.6	3.5	4	0.8	0.8	817	386	38	45
F688ZZ		16	18	4	5	1	1.1	1252	592	36	43
F698ZZ		19	22	6	6	1.5	15	2237	917	36	43

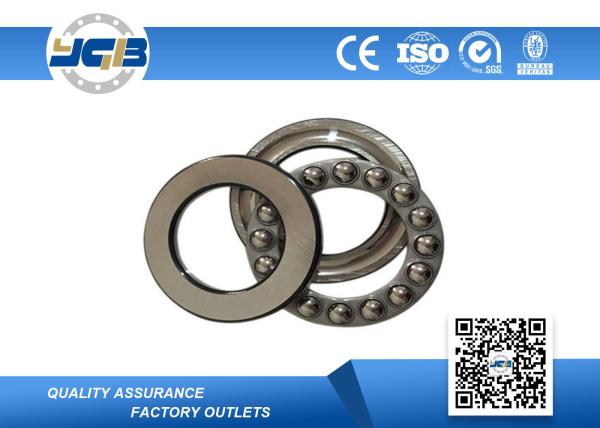

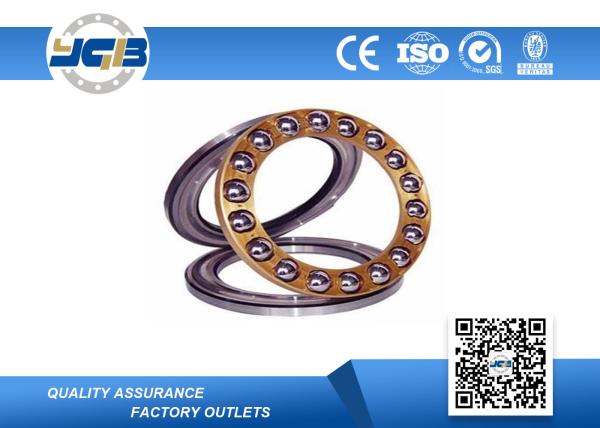

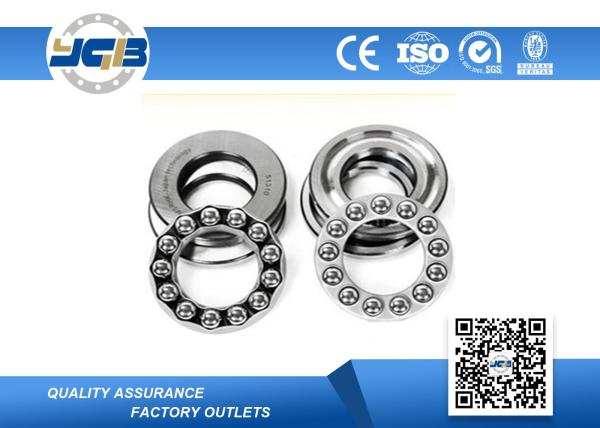

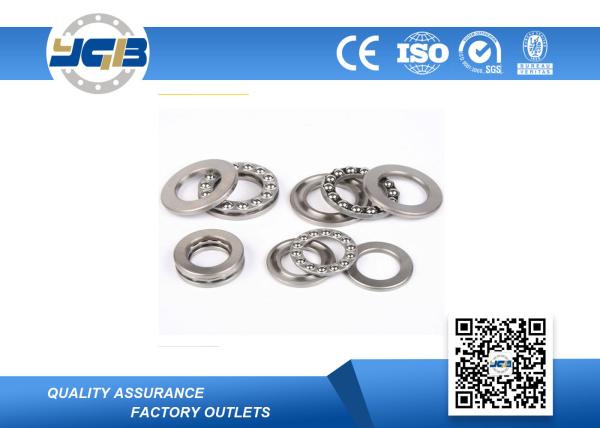

Drawing&Picture:

Our precision thrust ball bearings are designed for high precision, low noise, small vibration, high reliability, and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.

Ⅱ. Feature: high precision, high rotating speed, low friction, small clearance, low-noise, competitive price with good quality.
Ⅲ. Application: household appliances, dental drills, toys, electric power tools, electric motors, machine tools, measuring instruments, office machinery, Robot joint, facial beauty rollers, drone, etc.
