Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
6800- RS
Certification :
ISO9001:2008
Place of Origin :
China,Wuxi
MOQ :
1 pcs
Price :
Negotiable
Supply Ability :
10000pcs/day
Delivery Time :
Stock or 15-30days
Packaging Details :
plastic tube+individual box+carton
Model :
6800- RS
Size :
10x19x5mm
Number of Row :
single
Clearance :
C2,C0,C3,C4,C5
Viberation Level :
V1,V2,V3,V4
Precision Rating :
P0,P6,P5,
Description

6800 2RS Bearings 10x19x5 Slim / Thin Bearing Double Shielded Ball Bearing With Long Life

Description :

Model 6800- RS
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 10x19x5mm
Weight(kg) 0.005kg
Seal type double shields
Lead time Stock or 15-30days
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C


Features:
1. Simple Design, be convenient when using
2. Low Friction coefficient
3. High limit speed
4. Short delivery time
5. Large stock

Payment
1: T/T: 30% as deposit and 70% balance after get copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.


Details:

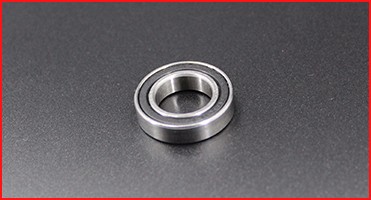

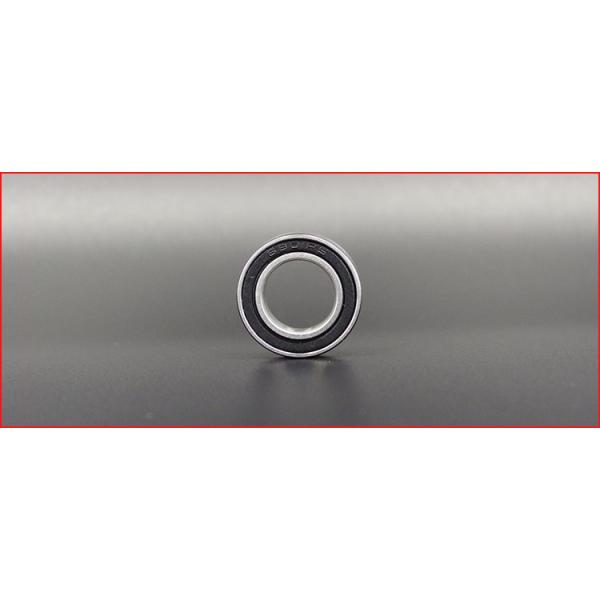

Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life

Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life

Other Models:

Bearing Bore Outer Diameter Width Load Rating
(KN)		 Steel Ball Parameter Max Speed Weight
NO d D B Dynamic Static NO Size Grease Oil (Kg)
mm inch mm inch mm inch Cr Cor mm r/min r/min
6000 10 0.3937 26 1.0236 8 0.315 4.55 1.95 7 4.763 29000 34000 0.019
6001 12 0.4724 28 1.1024 8 0.315 5.1 2.39 8 4.763 26000 30000 0.022
6002 15 0.5906 32 1.2598 9 0.3543 5.6 2.84 9 4.763 22000 26000 0.03
6003 17 0.6693 35 1.378 10 0.3937 6.8 3.35 10 4.763 20000 24000 0.039
6004 20 0.7874 42 1.6535 12 0.4724 9.4 5.05 9 6.35 18000 21000 0.069
6005 25 0.9843 47 1.8504 12 0.4724 10.1 5.85 10 6.35 15000 18000 0.08
6006 30 1.1811 55 2.1645 13 0.5118 13.2 8.3 11 7.144 13000 15000 0.12
6007 35 1.3779 62 2.4409 14 0.5512 16 10.3 11 7.938 12000 14000 0.16
6008 40 1.5748 68 2.6772 15 0.5906 16.8 11.5 12 7.938 10000 12000 0.19
6009 45 1.7716 75 2.9528 16 0.6299 21 15.1 12 8.731 9200 11000 0.25
6010 50 1.965 80 3.1496 16 0.6299 21.8 16.6 13 8.731 8400 9800 0.26
6011 55 2.1653 90 3.5433 18 0.7087 28.3 21.2 12 11 7700 9000 0.39
6012 60 2.362 95 3.74 18 0.7087 29.5 23.2 13 11 7000 8300 0.42
6013 65 2.559 100 3.937 18 0.7087 30.5 25.2 13 11.11 6500 7700 0.44
6014 70 2.7559 110 4.3307 20 0.7874 38 31 13 12.3 6100 7100 0.6
6015 75 2.9528 115 4.5276 20 0.7874 39.5 33.5 14 12.3 5700 6700 0.64
6016 80 3.1496 125 4.9213 22 0.8661 47.5 40 14 13.49 5300 6200 0.85
6017 85 3.3465 130 5.1181 22 0.8661 49.5 43 14 14 5000 5900 0.89
6018 90 3.5433 140 5.5118 24 0.9449 58 49.5 14 15.08 4700 5600 1.15
6019 95 3.7402 145 5.7087 24 0.9449 60.5 54 14 15.08 4500 5300 1.2
6020 100 3.937 150 5.9055 24 0.9449 60 54 14 16 4200 5000 1.2

Related Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at the time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.


Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
