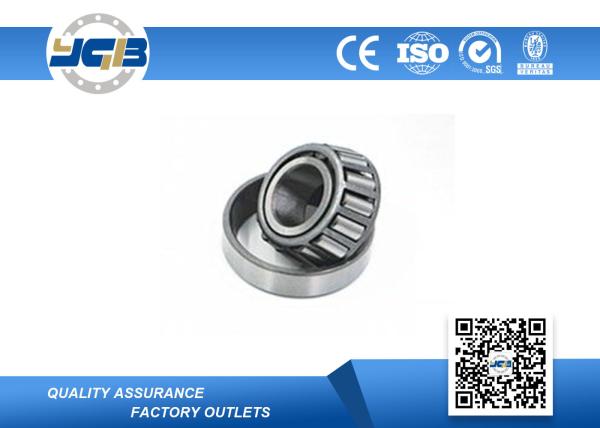

Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
LM11949
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Payment Terms :
T/T or LC
Model :
LM11949
Packing :
10pcs in a plastic keg + carton or individual box + carton
Seal type :
open,double seals,double shields
Number of row :
Single
Weight(kg) :
0.121
Payment terms :
T/T, L/C
Limiting speed :
18000 r/min
SIZE :
19.05 x 45.237 x 15.494mm
Description

Tapered roller single row bearing LM11949 high performance for constructive machinery

Description :

Model LM11949
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 19.05 x 45.237 x 15.494mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 0.121
Basic dynamic load ratings/C 27.5 kN
Basic static load ratings/C0 27.5 kN
Limiting speed 18000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C

Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle. The size of the angle is indicated by the calculation factor e: the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing.
Single row tapered roller bearings are separable, i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).

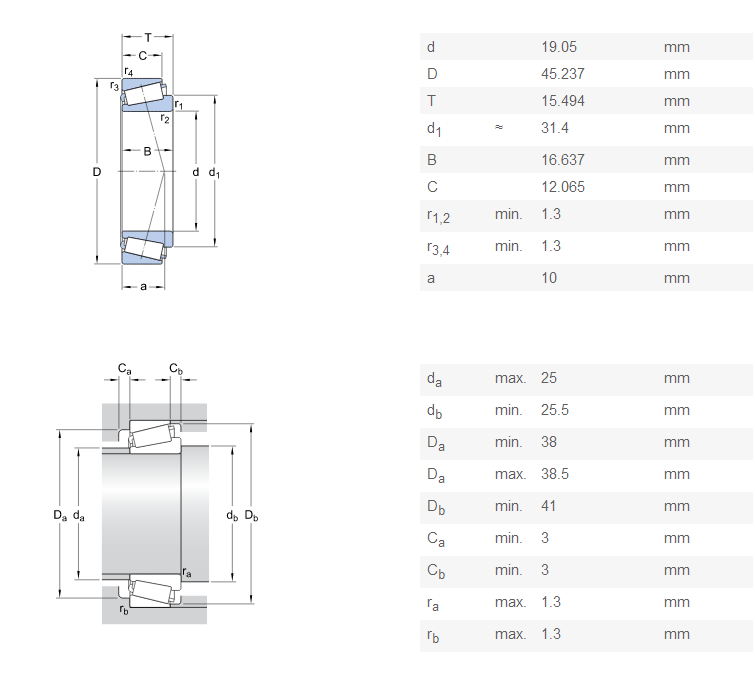

Drawing:

Sealed Single Row Tapered Roller Bearing For Skateboard Wheels LM11949




Other Models:
d(mm) D(mm) T(mm) Model Weight(KG)
7.937 31.991 10.008 A2031 A2126 0.05
11.112 34.988 10.998 A4044 A4138 0.05
12.68 34.988 10.998 A4049 A4138 0.05
12.7 38.1 13.495 00050 00150 0.08
15.875 39.992 12.014 A6062 A6157 0.06
15.875 49.225 23.02 09062 09194 0.21
16.993 39.982 12.014 A6067 A6157A 0.08
16.993 39.982 12.014 A6067 A6157 0.08
17.455 36.525 11.112 A5069 A5144 0.05
17.462 44.45 12.7 4C 6 0.09
17.462 44.45 15.494 05068 05175 0.12
17.987 47 14.381 05070XS 05185-S 0.13
18 47 14.381 05070X 05185-S 0.13
19.004 56.896 19.368 1774 1729 0.26
19.004 56.896 19.368 1774 1729X 0.26
19.05 41.275 11.905 A6075 A6162 0.07
19.05 44.45 12.7 4A 6 0.09
19.05 47 14.381 05075X 05185-S 0.13
19.05 49.225 21.209 09067 09194 0.19
19.05 49.225 23.02 09074 09194 0.19
19.05 49.225 23.02 09074 09196 0.19
19.05 49.225 23.02 09078 09194 0.19
19.05 49.225 23.02 09078 09196 0.19
19.05 50.8 20.637 09074 09201 0.2
19.05 52.8 18.034 LM11949 LM11919 0.2
19.05 52.883 18.43 09067 09194-S 0.21
19.05 52.883 20.241 09074 09194-S 0.21
19.05 53.975 22.225 21075 21213 0.25
19.987 46.99 15.25 05079 05186 0.13
19.987 47 14.381 05079 05185-S 0.13
19.987 51.994 15.011 07079X 07204 0.16
20 51.994 15.011 07079 07204 0.16
20.627 56.896 19.368 1778 1729 0.26
21.987 45.237 15.494 LM12749 LM12710 0.12
22.225 42.07 11.176 LL52549 LL52510 0.06
22.225 51.994 15.011 07087 07204 0.15
22.225 52 15.011 07087X 07205 0.15
22.225 53.975 19.368 1755 1730 0.22
22.225 57.15 19.368 1755 1729X 0.25
22.225 57.15 19.845 1975 1922 0.26
22.225 58.738 19.05 1975 1932 0.27
22.225 60.325 19.845 1975 1931 0.29
22.225 61.912 36.512 3655 3620 0.52
22.225 62 17.983 246X 242 0.29

Our Main Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

FAQ

Q: Can I get free samples for test from your company?
A: Standared samples are avialable, all customers must pay shipping cost

Q: What is the MOQ of your products?
A: The MOQ of our products is 1 pcs for one model one size

Q: We'd like to print our Logo on the appliances. Can you make it?
A: We provide OEM service which including logo printing, and carton design.

Q: How about the delivery time?
A: 30 - 45 days after the receipt of deposit and confirmation on all designs based of normal condition.

Payment
1 : T/T: 30% as deposit and 70% balance after get copy of B/L.
2 : L/C (cannot for branded bearings.)
3 : Discuss together between buyer and supplier.




Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
