Electrically Insulated Bearing 6214 MC4VL0241 Bearing 70×125×24mm Used In Wheelsets Motors

Electrically Insulated Bearing 6212 M/C4VL0241 is Deep Groove Ball Bearing design. its dimension is 60×110×22mm, it has the same dimension and the same design with normal chrome steel 6212 bearing. but the most different is 6212M/C4VL0241 bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC.

Electrically Insulated Bearing 6212 M/C4VL0241 Bearing are not only Electrically Insulated deep groove ball Bearing, but also Electrically Insulated Cylindrical Roller Bearing, Electrically Insulated Tapered Roller Bearing, Electrically Thrust Roller Bearing and the other type Normal or Non-Standard Electrically Insulated Rolling Bearings. They are the same dimension, same cage, same elements and the other data with normal chrome steel rolling bearing, just the different coating on the surface of the inner ring or outer ring of the Rolling Bearing.

Electric Insulated bearing 6212 M/C4VL0241 bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearings are widely used in Electric Motors, Generator, Alternator. There is100μm thick coating on the surface of the inner or outer ring, the into coat bearing can bear voltages up to 1000V DC, insulated & into coat bearing can keep away from moisture and humidity, it can carry radial and axial loads in both directions.

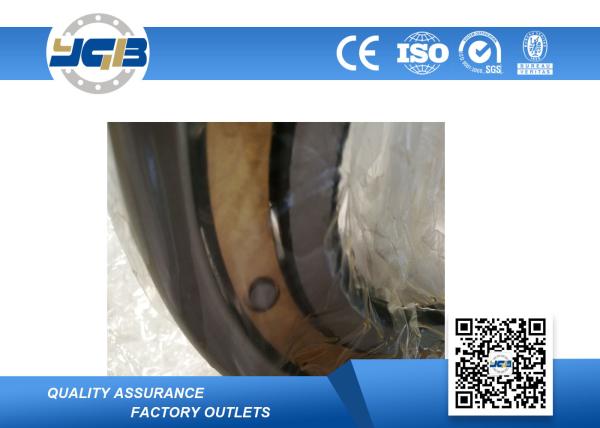

Photo:

Drawing:

Benefits of Electrically Insulated Bearing 6214 MC4VL0241 bearing

• Two functions in one solution:

– A bearing function

– Electrical insulation

• Virtually eliminates premature bearing failures caused by stray electric currents

• Increases machine uptime

• Reduces maintenance costs

• Provides an economical solution when compared with other insulation solutions

• Global availability.

Electric Insulated Bearing 6214 M/C4VL0241 provide a bearing function and electrical insulation, virtually eliminates premature bearing failure caused by stray electric currents, the electrically insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenance.
