Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile
Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile
Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile
Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
LBE16UUOP
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Payment Terms :
T/T or LC
Model :
NKI 9/12
Grease :
Mobil polyrex EM,Kyodo Yushi SRL
Port :
Shanghai
material :
GCr15/AISI52100/100Cr6
Seal type :
double shields / Open / double seals
Description

Full Complement Drawn Cup Textile Flat Steel Needle Roller Bearings NKI 9 /12

Description :

Needle roller bearing NKI9/12 are roller bearings with cylindrical rollers that are small in diameter. In spite of their low cross section, needle roller bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.

Needle roller bearing NKI9/12 only carry pure radial load and can not limit the axial displacement of shaft relative to the housing. It is important to ensure that inner ring axis and outer ring axis must be aligned during mounting the bearings.

Model NKI 9/12
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 9 x 19 x 12mm
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 0.0166
Basic dynamic load ratings/C 6.7 kN
Basic static load ratings/C0 8.2 kN
Limiting speed 30000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C

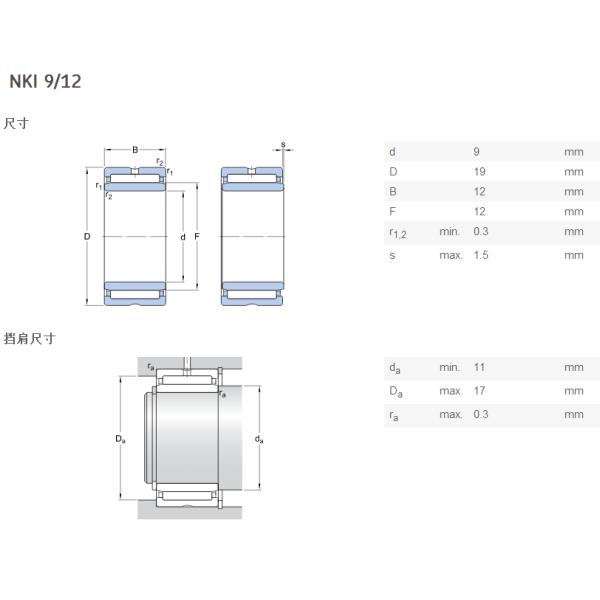

Drawing:
Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile

Series Models:

Shaft Diameter Bearing Designation Mass Approx Borndary Dimensions Pemissible Torque Md Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotatng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
-- HF061210 3.2 8 12 10 3 16000 12000 HK0808
-- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
-- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
-- HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
35 -- HF3520 40 35 42 20 121 3900 3900 HK3512

Needle roller bearings :

Drawn cup needle roller bearings, HK, BK, HK 2RS, BK RS
Drawn cup needle roller bearings, TA, TLA
Drawn cup needle roller bearings, Inch size SCE, BCE...
Drawn cup needle roller bearings full complement, F, MF
Drawn cup needle roller clutch, HF, HFL
Needle roller and cage assemblies, K, K...ZW
Needle roller and cage assemblies, rod use KZK, KBK
Needle roller bearings without inner ring, NK, RNA, NKS
Needle roller bearings, NKI, NA
Needle roller bearings, flanges, without inner ring, RNAO, RNAO, ZW
Needle roller bearings, flanges, with inner ring, NAO...ZW
Needle roller bearings without inner ring full complement, RNAV
Needle roller bearings with inner ring full complement, NAV
Axial thrust needle roller and cage assemblies, AXK, AXW
Axial thrust needle roller and cage assemblies, inch size TC

QC:


We have complete process for the production and quality assurance to make sure our products can meet your requirement. And our quality can compare with the most chinese famous bearing manufacture. we have the same technology. Such as
1 . Assembly
2 . Windage test
3 . Cleaning
4 . Rotary test
5 . Greasing and gland
6 . Noise inspection
7 . Appearance inspection
8 . Rust prevention
9 . Product packag

Payment
1 : T/T: 30% as deposit and 70% balance after get copy of B/L.
2 : L/C (cannot for branded bearings.)
3 : Discuss together between buyer and supplier.

Application:


Full Complement Needle Roller Bearing / NKI 9 12 Drawn Cup Bearing Textile
