Chrome Steel OPEN Spherical Roller Thrust Bearing ABEC1 And Z2 V2 Vibration

Quick Details:

1) Spherical Roller Thrust Bearing 29368 29368E

2) Bearing Material: Chrome steel:

Cage: Brass/Metal Cage

3) Abundant Stock &Quick Delivery

4) Brands: YGB or OEM

Specifications:

Description:

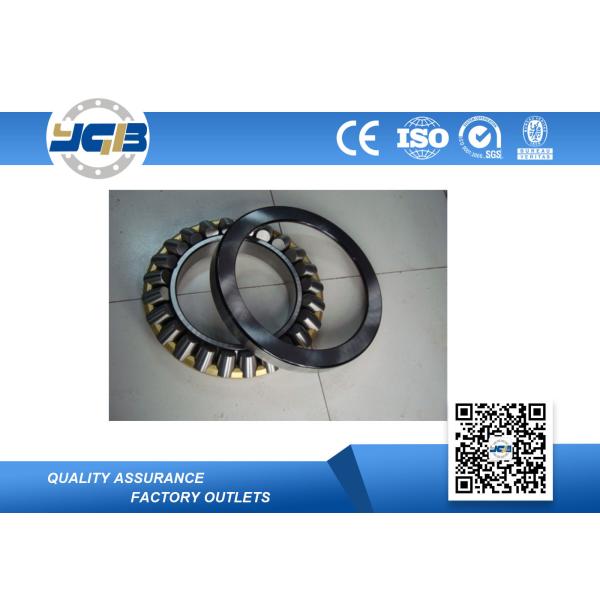

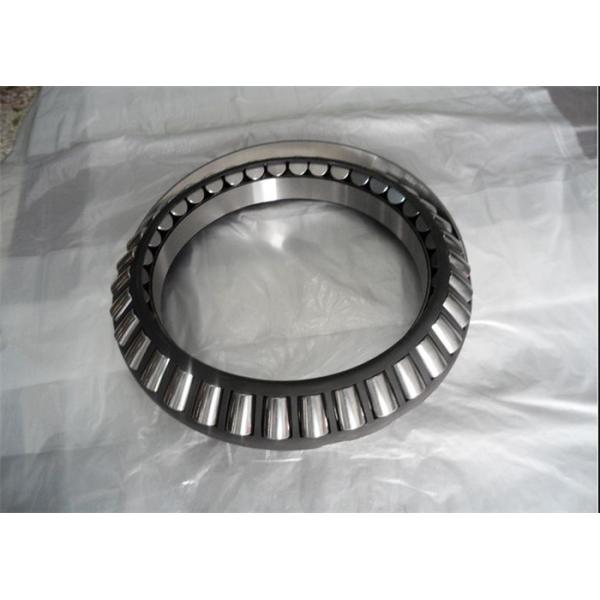

Spherical Roller Thrust Bearing (29368 29368E )

Spherical roller thrust bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length. Therefore, they can accommodate relatively high speeds, heavy axial loads in one direction and heavy radial loads. The load is transmitted between the raceways at an angle to the bearing axis. Spherical roller thrust bearings are self-aligning and insensitive to static misalignment of the shaft relative to the housing.

Applications:

Spherical bearings are used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis. A good example is the drive axle bearings of a vehicle control arm (or A-arm) suspension. The mechanics of the suspension allow the axle to move up and down (and the wheel to turn in order to steer the vehicle), and the axle bearings must allow the rotational axis of the axle to change without binding. While in practice, spherical bearings are not used here, it is a simple concept that illustrates a possible application of a spherical bearing. In fact, spherical bearings are used in smaller sub-components of this type of suspension, for example certain types of constant-velocity joints.

Spherical bearings are used in car suspensions, engines, driveshafts, heavy machinery, sewing machines, and many other applications.

ligning and insensitive to static misalignment of the shaft relative to the housing.
