Electrically Insulated Bearing 6012 M/C4VL0241 Bearing 60×95×18mm Used In Locomotive And EMU Powertrain System

Electrically Insulated Bearing 6012 M/C4VL0241 is Deep Groove Ball Bearing design. its dimension is 60×95×18mm, it has the same dimension and the same design with normal chrome steel 6012 bearing. but the most different is 6012 M/C4VL0241 bearing with Aluminium Oxide Coating . the coating can Electrical Resistance Voltages up to 3000 V DC.

A much more economical solution is to provide for the use of Electrically Insulated Bearing 6012 M/C4VL0241 Bearing during the planning stage. This reduces maintenance and repair costs and increases machine availability – all of which means greater value for the customer.

In most cases, it is sufficient to interrupt the electric circuit between the housing and shaft, in order to mount Electrically Insulated Bearing at one or both bearing locations, depending on the application.

Generally, Electrically Insulated Bearing 6012 M/C4VL0241 Bearing (ceramic-coated ) exhibit significantly higher resistance to electrical current than standard bearings.

Electric Insulated bearing 6012 M/C4VL0241 Bearing has an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearings are widely used in Electric Motors , Generator, Alternator. There is 100μm thick coating on the surface of the inner or outer ring, the into coat bearing can bear voltages up to 1000V DC, insulated & into coat bearing can keep away from moisture and humidity, it can carry radial and axial loads in both directions.

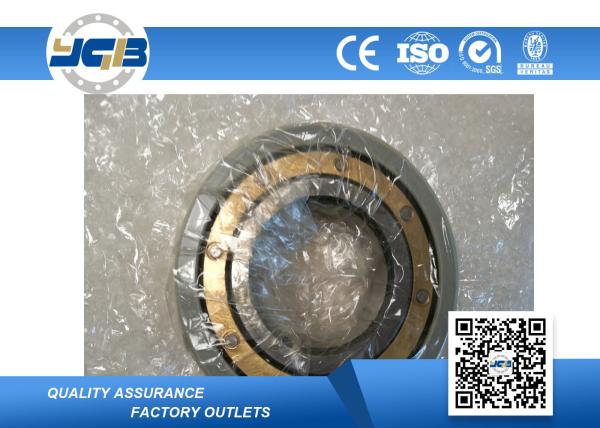

Photo:

Drawing:

Electric Insulated bearing 6012 M/C4VL0241 Bearing used in:

• Wheelsets and traction motors (rail vehicles)

• DC and AC motors (drivetrains)

• Generators (wind power)
