Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed
Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed
Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed
Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
624-2RS
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Payment Terms :
T/T or LC
Model :
624-2RS
Size :
4x13x5mm
Precision grade :
P0,P6,P5
Seals Type :
Open,Double seals,Double shields
Payment terms :
L/C,TT
Description

Small size mini bearing single row low noise deep groove bearing 624-2RS 4x13x5mm

Description:

Model 624-2RS

Bearing material

GCr15/AISI52100/100Cr6

ID*OD*W (mm)

4x13x5mm

Seal type

open,double seals,double shields

Lead time

Stock or 15-30days
Weight(kg) 0.0031

Basic dynamic load ratings/C

 0.936kN

Basic static load ratings/C0

 0.29kN

Limiting speed

 67000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,

MOQ

1 PCS

Port

Shanghai
Grease

Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C

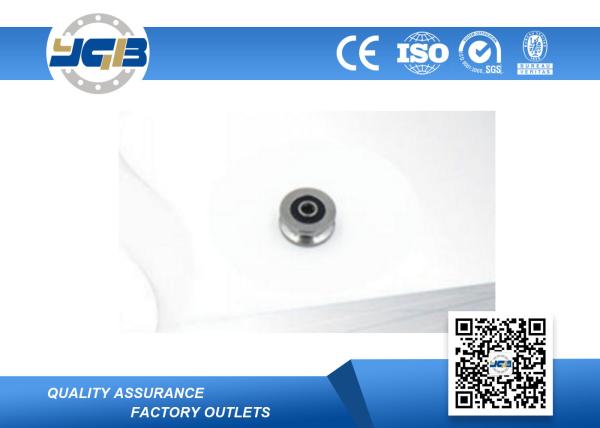

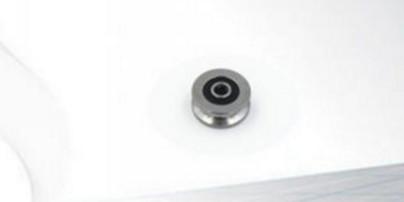

Photo:

Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed

Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed

Drawing:

Static Garden Windmill Deep Groove Ball Bearing Single Row 624-2RS High Speed

More Information
d = 90
D = 115
B = 13
Dynamic Load = 19.5 kn
Static Load = 22 kn
Pu = 0.915
Reference Speed = 11000 rpm
Limiting Speed = 7000 rpm
kg = 0.28
d1 = 98.2
D1 = 107
D2 = n/a
r1r2 min = 1
da min = 94.6
Da max = 110
ra max = 1
Calc Factor kr = 0.015
Calc Factor Cor = 17

Specification:

1. High precision bearings

2. ISO standard bearing

3. High quality and competitive price

4. Many famous brands can be available

5. Low noise and long life

Packaging & shipping;

Packaging Details

1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'

Payment terms :

1). 30%T/T in advance, 70% balance has to be paid before first shipment.

2). 100% L/C at sight

3). Other payment terms depend on our discussion

Series Model:

Bearing Dimensions(mm) Weight (kg) Bearing No. Dimensions(mm) Weight(kg)
No.
d D B d D B
6200 10 30 9 0.014 6300 ZZ 10 35 11 0.052
6201 12 32 10 0.036 6301 ZZ 12 37 12 0.059
6202 15 35 11 0.044 6302 ZZ 15 42 13 0.082
6203 17 40 12 0.065 6303 ZZ 17 47 14 0.109
6204 20 47 14 0.102 6304 ZZ 20 52 15 0.142
6205 25 52 15 0.125 6305 ZZ 25 62 17 0.260
6206 30 62 16 0.202 6306 ZZ 30 72 19 0.310
6207 35 72 17 0.285 6307 ZZ 35 80 21 0.453
6208 40 80 18 0.370 6308 ZZ 40 90 23 0.636
6209 45 85 19 0.404 6309 ZZ 45 100 25 0.825

Deep groove ball bearing ball type:

1.single row deep groove ball bearing(open)

2.single row deep groove ball bearing with dust cover

3.single row deep groove ball bearing with seal ring

4.single row deep groove ball bearing with snap ring

5.single row deep groove ball bearing has filled the ball gap

6.double row deep groove ball bearing

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
