Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings
Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings
Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings
Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings
Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
NUP 204 ECML
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Payment Terms :
T/T or LC
Model :
NUP 204 ECML
Grease :
Mobil polyrex EM,Kyodo Yushi SRL
Seal type :
open,double seals,double shields
Number of row :
Single
Size(mm) :
20 x 47 x 14
Weight(kg) :
0.132
Description

With single inner ring flat roller bearings NUP 204 ECML 20 x 47 x 14 mm

Description :

Model NUP 204 ECML
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 20 x 47 x 14
Seal type double shields
Lead time Stock or 15-30days
Weight(kg) 0.132
Basic dynamic load ratings/C 28.5 kN
Basic static load ratings/C0 22 kN
Limiting speed 30000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C


Other Models:
Principal dimension(mm) Weight(kg) Bearing number Basic Load Rating(KN) Speed(rpm)
d D B R1min Rsmin Dynamic Cr Static Cor reference Limited
15 35 11 0.6 0.3 0.050 N202 12.7 10.4 20000 22000
15 35 11 0.6 0.3 0.050 NJ202 12.7 10.4 20000 22000
15 35 11 0.6 0.3 0.050 NU202 12.7 10.4 20000 22000
17 40 12 0.6 0.3 0.06 N203 17.6 14.6 10000 18000
17 40 12 0.6 0.3 0.06 NJ203 14.5 12.8 18000 18000
20 47 14 1.0 0.6 0.109 N204 16.6 13.9 17000 20000
20 47 14 1.0 0.6 0.111 NJ204 16.6 13.9 17000 20000
20 47 14 1.0 0.6 0.111 NU204EM 16.6 13.9 17000 20000
20 52 15 1.1 0.6 0.149 N304 23.1 19.2 14000 17000
20 52 15 1.1 0.6 0.153 NJ304 23.1 19.2 14000 17000
20 52 15 1.1 0.6 0.153 NU304 23.1 19.2 14000 17000
25 52 15 1.0 0.6 0.160 N205EM 27.5 26.8 11000 14000
25 52 15 1.0 0.6 0.137 NJ205 18.8 17 14000 17000
25 52 18 1.1 0.6 0.170 NJ2205V 35.3 29.4 12000 25000
25 52 15 1.0 0.6 0.160 NU205EM 27.5 26.8 11000 14000
25 62 17 1.1 1.1 0.235 N305 31.5 27.7 12000 14000
25 62 17 1.1 1.1 0.241 NJ305 31.5 27.7 12000 14000
25 62 17 1.1 1.1 0.241 NU305 31.5 27.7 12000 14000
25 62 24 1.1 1.1 0.370 NJ2305V 67 72.7 7200 10000

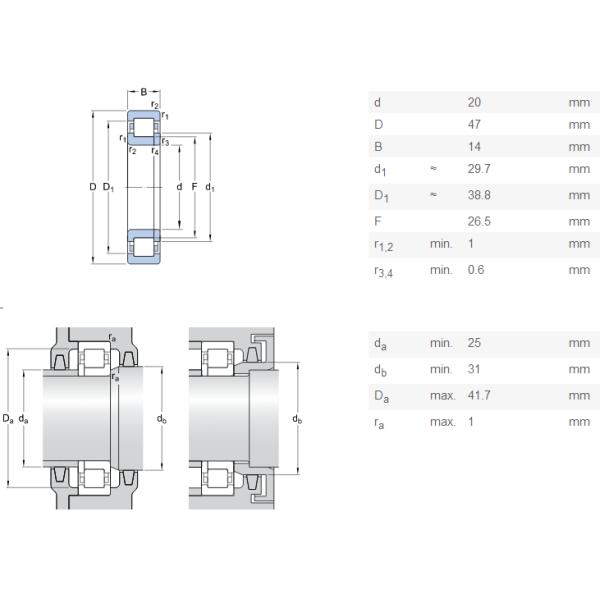

Drawing:

Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings
Shipping:
1) . For small order, we can send you by UPS, DHL, FEDEX, TNTOR EMS. The tracking number will be advised after delivery.
2) . If order is big, we will advise you to use Air Freight or Sea Freight.
3) . The balance payment should be paid before delivery to you.
4) . In general, we deliver the goods within 15 days.

Payment
1 : T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2 : L/C (cannot for branded bearings.)

Our Service
Business model and Supply chain are OUTSTANDING!
Offering,delivering and solving issues are EFFICIENT!
Customer Satisfaction and respose are MIRACULOURS!
Our factory:

Small Cylindrical Roller Bearing / Linear Flat Needle Roller Bearings

All bearings are high precision, low-noise with dynamic and static load ratings that conform to internationally recognized standards.

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
