T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts
T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts
T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts
T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts
Specifications
Brand Name :
SupAnchor
Model Number :
T73/35
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Jiangsu, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor T73/35 Self Drilling Rock Bolt
Thread Type :
T international standard
Ultimate Load (kN) :
1865
O.D. (mm) :
73
Yield Load (kN) :
1430
I.D. (mm) :
35
Cross Sectional Area (mm2) :
2.700
Unit Weight (Kg/m) :
21.20
Description

73mm Outside Diameter Threaded SDA T73/35 Self Drilling Hollow Grout Rock Bolts

Features

SupAnchor has achieved the security application of 30,000,000 meters self-drilling anchor bar in the world. The self drilling system enables drilling and grouting in one operation, making much saving in jobsite and project time.

The self drilling rock bolt is driven to the required depth by means of rotary percussive drilling.Injection is carried out through hollow rock bolt. Injection mixture flows through the holes at the sacrificial drill bit and automatically stabilizes the drilled hole. Injection ends when the mixture begins to exit from drilled hole.

Applications

1. Ground piling

2. Slope stabilization

3. Radial systematic anchoring

4. Foundation

5. Spilling

6. Tunneling

Technical Data

Micro Pile Bar T73/53 T73/56 T73/45 T73/35
Outside Diameter (mm) 73 73 73 73
Internal Diameter (mm ) 53 56 45 35
Cross sectional area (mm2) 1680 1369 2267 2700
Ultimate load (kN) ≥ 1160 ≥ 1035 ≥ 1575 ≥ 1865
Load at 0.2% Yield (kN) ≥ 970 ≥ 830 ≥ 1270 ≥ 1430
Weight (kg/m) 13.20 10.75 17.80 21.20
Thread type T73 International Standard / Continuously right hand threaded
Type of steel 40Cr / Q345B / S460NH
Elongation % Agt ≥ 5%, A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ...
Length (m) (1) x 2, x3, x4
Options of Anti-corrosion Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461.
*Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to
standard ISO 2409:2007.
*SupCoat: HDG + EC

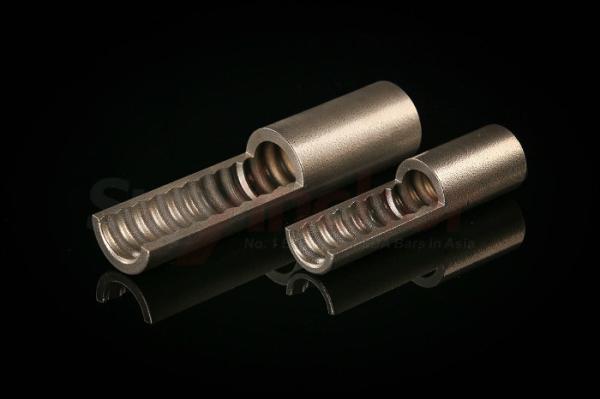

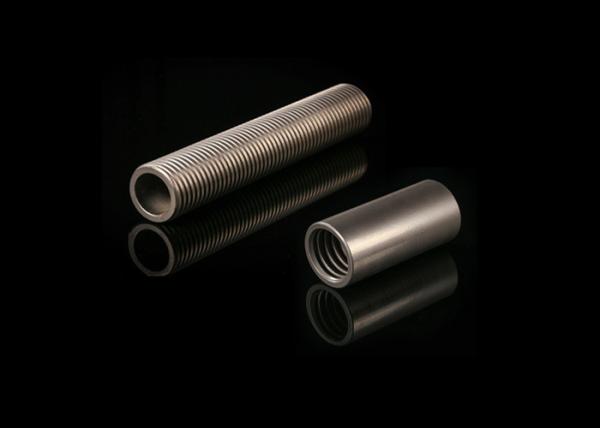

Anchor Bar and Accessories

T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts

Job sites
T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts

T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock BoltsT73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Bolts

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

QC Procedure
SupAnchor T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock Boltshas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the T73/35 Yield Load 1430kN 21.20Kg/M Self Drilling Hollow Grout Rock BoltsNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
