Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar
Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar
Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar
Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar
Specifications
Brand Name :
SupAnchor
Model Number :
T30, T40, T52, T73, T76, T103, T127
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Jiangsu, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
O.D. (mm) :
30 to 127
I.D. (mm) :
11 to 111
Ultimate Load (kN) :
220 to 3,660
Yield Load (kN) :
180 to 2,670
Cross Sectional Area (mm2) :
343 to 5,680
Thread Type :
T international standard
Unit Weight (Kg/m) :
2.70 to 44.60
Length (m) :
(1) x2, x3, x4, x5, x6, x7, x8, x9
Description

SupAnchor self drilling 30mm to 127mm soil nailing anchor hollow bar

Features

SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

Applications

Tunnelling Ground engineering

1. Face stabilization

2. Radial systematic anchoring

3. Foundation for avalanche protect

4. Stabilization of tunnel portals

5. Spilling

6. Root piling

Technical Data

Injection Bar T40/20 T40/16
Outside Diameter (mm) 40 40
Internal Diameter (mm ) 20 16
Cross sectional area (mm2) 713 910
Ultimate load (kN) 540 660
Load at 0.2% Yield (kN) 430 525
Weight (kg/m) 5.80 7.18
Thread type T40 International Standard / Left or Right
Type of steel 40Cr / Q345B / S460NH
Elongation % Agt ≥ 5%, A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ...
Length (m) (1) x 2, x3, x4
Options of Anti-corrosion Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461.

*Epoxy Coating: Bending properties up to standard ISO 1519;

Impact properties up to standard ASTMD 2794; Adhesion up to

standard ISO 2409:2007.

*SupCoat: HDG + EC

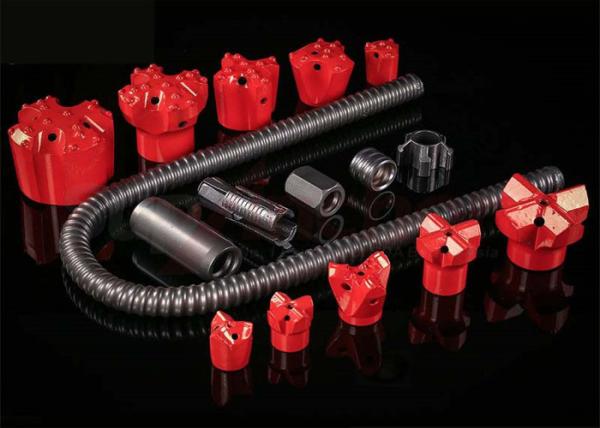

Anchor Bar and Accessories

Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar

Job sites
Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar

Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow BarSelf Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow BarSelf Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Bar

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

QC Procedure
SupAnchor Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow Barhas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the Self Drilling 30mm 40mm 127mm Soil Nailing Anchor Hollow BarNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
