SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods
SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods
SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods
SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods
Specifications
Brand Name :
SupAnchor
Model Number :
SSTR32/400
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Jiangsu, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor SSTR32/400 Stainless Steel Anchor Rod
Thread Type :
ISO 10208 / Left or right
Ultimate Load (kN) :
400
O.D. (mm) :
32
Yield Load (kN) :
320
Tensile Strength （N/mm2 ) :
1,000
Cross Sectional Area (mm2) :
433
Unit Weight (Kg/m) :
3.40
Description

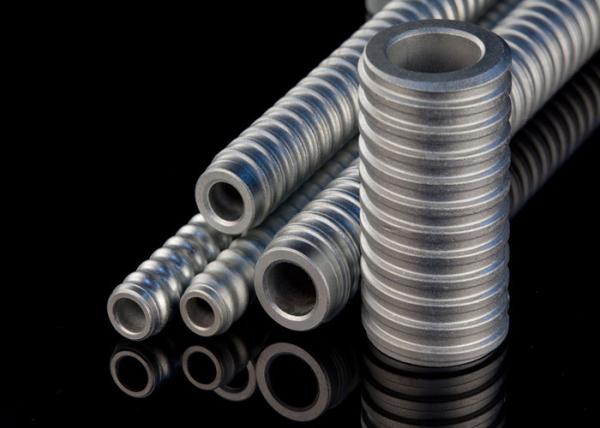

SSTR32 400kN Tensile Load SDA Shore Ground Anchors Stainless Steel Anchor Rods

Features

SupAnchor® stainless steel anchor rod self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

  • High corrosion resistance

  • Tensile Strength (N/mm2 ) >= 1000 N/mm2

  • 100+ year service life

Applications

  • Coastal defence walls, slopes and slabs

  • Soil nails

  • Docks and harbours

  • Building and bridge cross ties

  • Ground anchors

  • Holding down bolts

  • Rock bolts

Advantages

  • Proven high bond strength

  • Unique corrosive resistant

  • 2m to 6m standard lengths

  • Superior ductility for seismic activity

  • High strength thread

Technical Data

Stainless Steel

Anchor Bar

SSTR25/

200

SSTR32/

250

SSTR32/

280

SSTR32/

320

SSTR32/

360

SSTR32/

400
Ultimate load (kN) ≧200 ≧250 ≧280 ≧320 ≧360 ≧400
Yield load (kN) ≧150 ≧200 ≧230 ≧260 ≧280 ≧320
Tensile Strength (N/mm2) ≧1000 ≧1000 ≧1000 ≧1000 ≧1000 ≧1000
Outside Diameter (mm) 25 32 32 32 32 32
Cross sectional area (mm2) 229 266 299 336 382 433
Weight (kg/m) 1.80 2.10 2.35 2.65 3.00 3.40
Thread type ISO 10208 / Left or Right
Length (m) 2/3/4/5/6
Type of Stainless Steel 1.4462 / 304 / 316
Chemical composition .% Cr Ni C Si Mn P S
1.4462 Stainless steel 21.0 - 23.0 4.5 - 6.5 ≦ 0.03 ≦ 1.0 ≦ 2.0 ≦ 0.03 ≦ 0.02
304 Stainless steel 18.0 - 20.0 8.0 - 10.5 ≦ 0.08 ≦ 0.75 ≦ 2.0 ≦ 0.045 ≤ 0.03
316 Stainless steel 16.0 - 18.0 10.0 - 14.0 ≦ 0.08 ≦ 1.0 ≦ 2.0 ≦ 0.045 ≤ 0.03

Anchor Bar and Accessories

SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods

Job sites

SupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor RodsSupAnchor Length 6m Ultimate Load 400kN O.D. 32mm Stainless Steel Anchor Rods5_03.jpg
