25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods
25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods
25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods
25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods
Specifications
Brand Name :
SupAnchor
Model Number :
SSTR25
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Jiangsu, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor SSTR25/200 Stainless Steel Anchor Rod
Thread Type :
ISO 10208 / Left or right
Ultimate Load (kN) :
200
O.D. (mm) :
25
Yield Load (kN) :
150
I.D. (mm) :
12
Cross Sectional Area (mm2) :
229
Unit Weight (Kg/m) :
1.80
Description

Features

SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

  • High corrosion resistance

  • Tensile Strength (N/mm2 ) >= 1000 N/mm2

  • 100+ year service life

Applications

  • Coastal defence walls, slopes and slabs

  • Soil nails

  • Docks and harbours

  • Building and bridge cross ties

  • Ground anchors

  • Holding down bolts

  • Rock bolts

Technical Data

Stainless Steel

Anchor Bar

SSTR25/

200

SSTR32/

250

SSTR32/

280

SSTR32/

320

SSTR32/

360

SSTR32/

400
Ultimate load (kN) ≧200 ≧250 ≧280 ≧320 ≧360 ≧400
Yield load (kN) ≧150 ≧200 ≧230 ≧260 ≧280 ≧320
Tensile Strength (N/mm2) ≧1000 ≧1000 ≧1000 ≧1000 ≧1000 ≧1000
Outside Diameter (mm) 25 32 32 32 32 32
Cross sectional area (mm2) 229 266 299 336 382 433
Weight (kg/m) 1.80 2.10 2.35 2.65 3.00 3.40
Thread type ISO 10208 / Left or Right
Length (m) 2/3/4/5/6
Type of Stainless Steel 1.4462 / 304 / 316
Chemical composition .% Cr Ni C Si Mn P S
1.4462 Stainless steel 21.0 - 23.0 4.5 - 6.5 ≦ 0.03 ≦ 1.0 ≦ 2.0 ≦ 0.03 ≦ 0.02
304 Stainless steel 18.0 - 20.0 8.0 - 10.5 ≦ 0.08 ≦ 0.75 ≦ 2.0 ≦ 0.045 ≤ 0.03
316 Stainless steel 16.0 - 18.0 10.0 - 14.0 ≦ 0.08 ≦ 1.0 ≦ 2.0 ≦ 0.045 ≤ 0.03

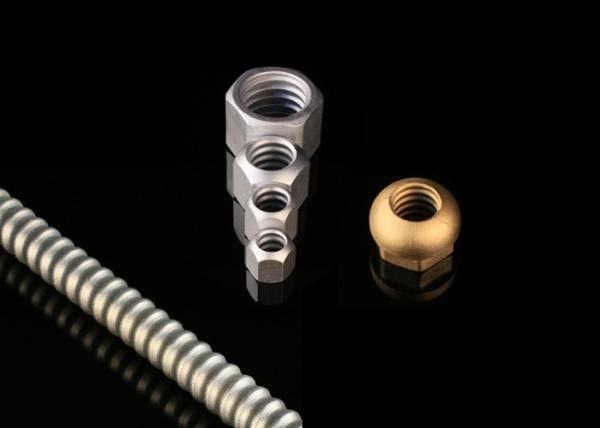

Anchor Bar and Accessories

25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods

Job sites
25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods

25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods25mm 1.80Kg/M Yield Load 150kN Stainless Steel Anchor Rods
