40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar
40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar
40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar
40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar
Specifications
Brand Name :
SupAnchor
Model Number :
SST40/540
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Jiangsu, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor SSTT40/540 Stainless Steel Anchor Rod
Thread Type :
T International Standard / Left or Right
Ultimate Load (kN) :
540
O.D. (mm) :
40
Yield Load (kN) :
430
Cross Sectional Area (mm2) :
573
Tensile Strength （N/mm2 ) :
1,000
Unit Weight (Kg/m) :
4.50
Description

Features

SupAnchor stainless steel anchor rod is suitable for both geotechnical and structural applications. It uses a cold rolled thread which not only enhances the strength of the rod, but also provides a robust, self cleaning and user friendly thread.

The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

  • High corrosion resistance

  • Tensile Strength (N/mm2 ) >= 1000 N/mm2

  • 100+ year service life

Advantages

  • High strength thread

  • Unique corrosive resistant

  • Proven high bond strength

  • 2m to 4m standard lengths

  • Superior ductility for seismic activity

Applications

  • Slope protection

  • Coastal defence walls

  • Foundation

  • Docks and harbours

  • Soil nails

  • Building and bridge cross ties

  • Ground anchors

Technical Data

Stainless Steel Injection Bar

SST30/

320

SST40/

540

SST40/

660

SST40/

800

SST52/

930

SST52/

1000

SST52/

1250
Ultimate load (kN) ≧320 ≧540 ≧660 ≧800c ≧930 ≧1000 ≧1250
Yield load (kN) ≧260 ≧430 ≧525 ≧630 ≧740 ≧800 ≧1000
Tensile Strength (N/mm2 ) ≧1000 ≧1000 ≧1000 ≧1000 ≧1000 ≧1000 ≧1000
Outside Diameter (mm) 30 40 40 40 52 52 52
Cross sectional area (mm2) 356 573 700 828 993 1070 1299
Weight (kg/m) 2.80 4.50 5.50 6.50 7.80 8.40 10.20
Thread type T International Standard / Left or Right
Length (m) 2002/3/4 2002/3/4 2002/3/4 2002/3/4 2002/3/4 2002/3/4 2002/3/4
Type of Stainless Steel 1.4462 / 304 / 316
Chemical composition .% Cr Ni C Si Mn P S
1.4462 Stainless steel 21.0 - 23.0 4.5 - 6.5 ≤ 0.03 ≤ 1.0 ≤ 2.0 ≤ 0.03 ≤ 0.02
304 Stainless steel 18.0 - 20.0 8.0 - 10.5 ≦ 0.08 ≦ 0.75 ≦ 2.0 ≦ 0.045 ≤ 0.03
316 Stainless steel 16.0 - 18.0 10.0 - 14.0 ≦ 0.08 ≦ 1.0 ≦ 2.0 ≦ 0.045 ≤ 0.03

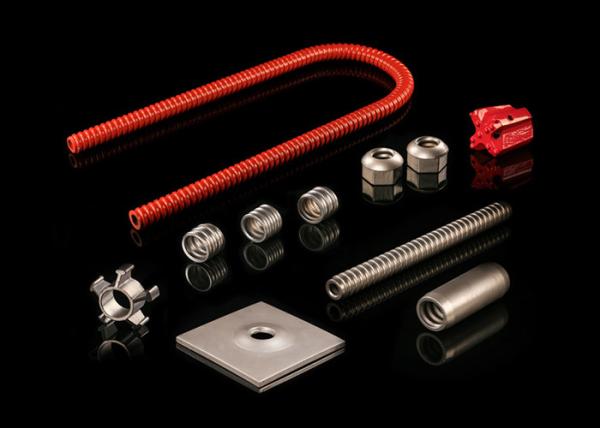

Anchor Bar and Accessories

40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar

Job sites
40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar

40mm Yield Load 430kN T Thread SST40/540 Stainless Steel Anchor Bar
