Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions
Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions
Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions
Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions
Specifications
Brand Name :
SupAnchor
Model Number :
R32/D42/L220mm
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Sichuan, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor R232/D42/L220mm Self Drilling Anchor Coupler
Thread Type :
ISO10208 - R32 / Left or Right
Outside Diameter (mm) :
42
Type of Steel :
40Cr
I.D. (mm) :
32
Hardness (HRC) :
20-30
Unit Weight (Kg/m) :
1.10
Length (mm) :
220
Description

Features

SupAnchor is the No. 1 manufacturer and exporter of self drilling anchor systems in Asia. The self drilling anchor system enables drilling and grouting in one operation, making much saving in jobsite and project time. Anchor coupler is used to connect to anchor bars for deep holes.

Fits SupAnchor® standard Boomer, ROC and Mustang rigs. Particularly suitable for difficult ground conditions.

Applications

1. Face stabilization

2. Mining

3. Tunneling

4. Stabilization of tunnel portals

5. Spilling

6. Foundation for avalanche protect

7. Root piling

Technical Data

Anchor Coupling

R32L

/22

R32N

/20

R32N

/18.5

R32S

/17

R32S

/15

R32SS

/14

R32

/320
Outside Diameter (mm) 42
Length (mm ) 145 160 160 190 190 220 190
Thread type ISO 10208 - R32 / Left or Right
Type of steel 40Cr / Q345B / 20Cr
Unit Weight (kg) 0.72 0.80 0.80 0.96 0.96 1.10 0.96
Hardness HRC 20-30
Options of Anti-corrosion Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461.

*Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard

ISO 2409:2007.

*SupCoat: HDG + EC

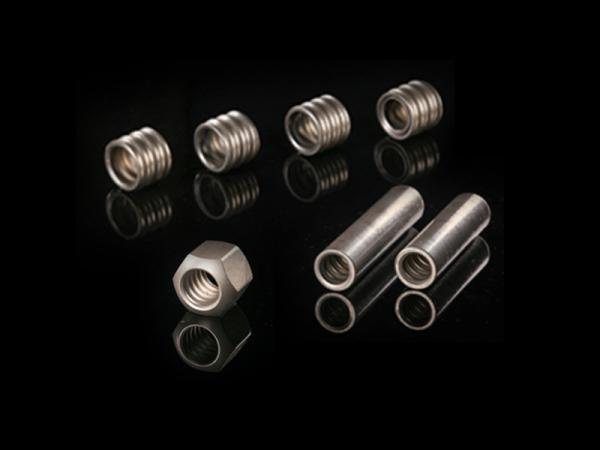

Anchor Bar and Accessories

Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions

Job sites
Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions

Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutions

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

QC Procedure
SupAnchor Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint Solutionshas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the Self Drilling Anchor Bar R32SS Metal Building Materials Tunnel Anchor Bar Coupler For Joint SolutionsNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
