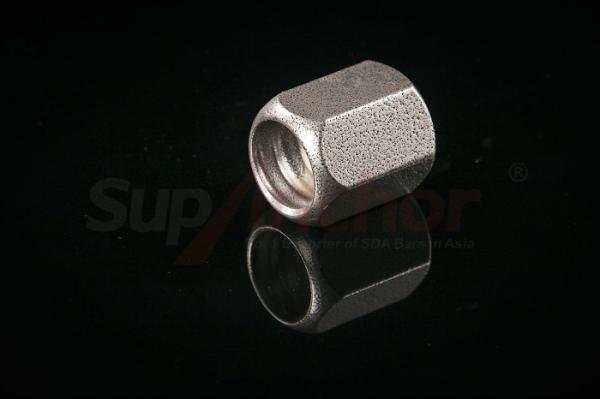

Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long
Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long
Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long
Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long
Specifications
Brand Name :
SupAnchor
Model Number :
R32/SW46/L75mm
Certification :
ISO, SGS, ITB, IBDIM
Place of Origin :
Sichuan, China
MOQ :
3 meters
Price :
1 - 30 USD
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
1 to 6 weeks
Packaging Details :
Packed in bundle with package paper.
Name :
SupAnchor R32/SW46/L75mm Self Drilling Anchor Nut
Anchor Bar Type :
R32
Key Size SW (mm) :
46
I.D. (mm) :
32
Length (mm) :
75
Hardness (HRC) :
20-30
Thread Type :
ISO10208 - R25 / Left or Right
Unit Weight (Kg/m) :
0.60
Description

Features

SupAnchor is the No. 1 manufacturer and exporter of self drilling anchor systems in Asia. It has achieved the security application of 30,000,000 meters self-drilling anchor bar in the world.

The Self Drilling Hollow System is an unique anchoring system and is today’s answer to the increasing demands of the tunnelling industry and ground engineering for safer and faster production.

Features and Advantage

Fits SupAnchor® standard Boomer, ROC and Mustang rigs. Particularly suitable for difficult ground conditions.

• A high rate of installation since drilling, placing and grouting can be performed in one single operation.

• Self drilling system eliminates the requirement for a cased borehole.

• Installation with simultaneous drilling and grouting possible.

• Easy installation in all directions, also upwards.

• Suitable for working in limited space, height and in areas of difficult access.

• Simple post grouting system.

Hot-dipped galvanizing for corrosion protection

Technical Data

Anchor Nut R32L/22 R32N/20 R32N/18.5 R32S/17 R32S/15 R32SS/14 R32/320
Key Size SW (mm) 46 46 46 46 46 46 46
Length L (mm) 45 45 45 65 65 75 65
Thread type ISO 10208 - R32 / Left or Right
Type of steel 40Cr / C45 / Q345B / 20Cr
Unit Weight (kg) 0.35 0.35 0.35 0.53 0.53 0.6 0.53
Nut type Hex Nut / Spherical Nut
Hardness HRC 20-30
Options of Anti-corrosion Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461.

* Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to

standard ISO 2409:2007.

*SupCoat: HDG + EC


Anchor Bar and Accessories

Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long

Job sites
Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long

Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Long

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

QC Procedure
SupAnchor Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm Longhas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the Self Drilling Anchor Bar R32 High Strength Steel Hex Or Domed Nut 75mm LongNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
