Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
Specifications
Brand Name :
INWAY
Model Number :
GPBW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Material :
Bronze with graphite
Type :
straight type
Size :
Standard Size,Customizable
Features :
Low Resistance,Long Operating Life,Maintenance,High precision
Standard :
JIS
Application :
Auto Suspension Parts
Description

Sankyo GPBW Solid Lubricant Bearings for automotive die mould stamping mould

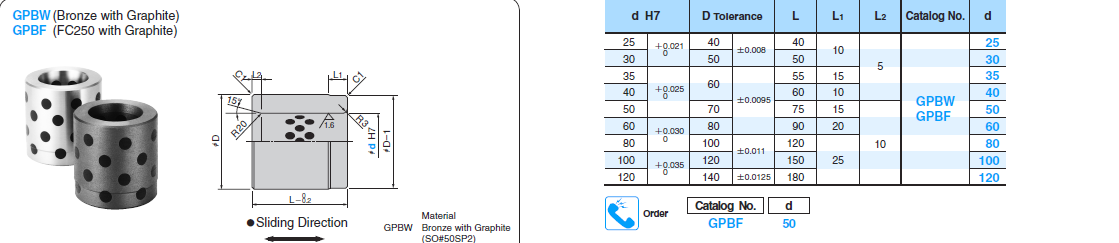

GPBW / GPBF guide bushing, straight type, bronze and steel material

GPBW=SO#50SP2 + graphites GPBF=FC250+graphites

GPBW/GPBF guide bushings consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.
Under technical dry running conditions, the bearing surface is designed with thick running-in film which
enables the solid lubricant to be transferred to the counter material at the first contact.

Structures

① Solid lubricant film
② Solid lubricant plug
③ Bronze backing

Typical Applications

The product is widely used in
  • continuous casting rolling machine
  • mining machinery
  • shipping machinery
  • turbine
  • injection machinery
  • auto mould and so on..
