Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2
Specifications
Brand Name :
INWAY
Model Number :
UWP
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Material :
casting bronze with graphite
Thickness :
5mm
Screw :
2 holes or 4 holes
Feature :
OEM production,Long Life,oil free
Lubrication :
oil free,Oil-free Self-lubricated
Standard :
JIS
Description
Copper Alloy Type Self Lubricating Bearings Thickness 5mm SO#50SP2

Part A. Product Features

  1. The wear plates are excellent in "friction resistance" and "self-lubrication". There is no "scoring" or "seizure" under harsh conditions.

  2. It can still bring the superior properties into play even under high load and low

    rotating speed.

  3. This wear resistance can be brought into play even in places the oil film form into difficulties because of the reciprocating and rocking movement, starting and stopping;

Part B . Product Operation

  • Demonstrates high performance under high-load and low-speed operations.
  • Demonstrates superior wear resistance in applications where oil film is seldom
  • produced such as reciprocating motions, oscillation, frequent starts and stops, etc

Part C. Product Application

  • Demonstrates high performance under high-load and low-speed operations.
  • Self-lubricating bearing with embedded solid lubricant and metal base that conforms to the universally-acknowledged ASTM Standards (C86300).
  • Serviceable without the need for lubrication.

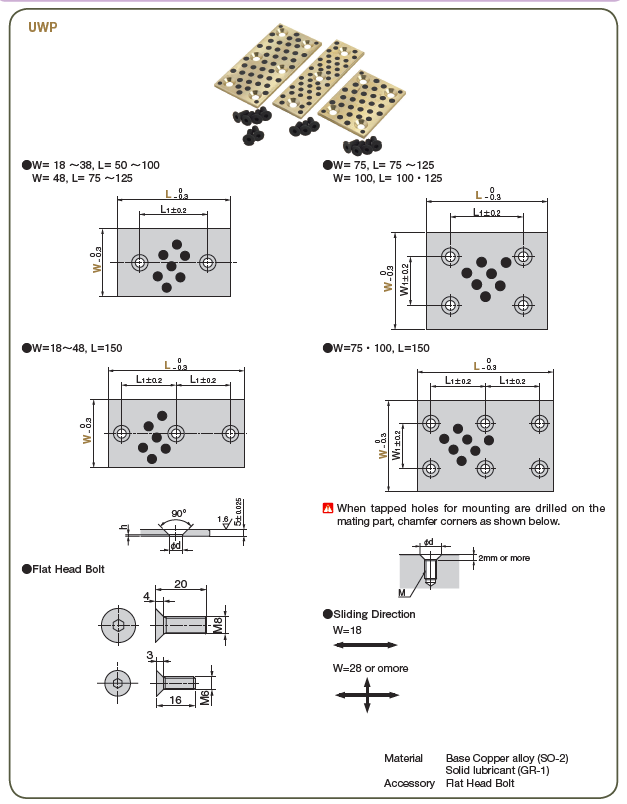

Types of Wear Plates
Material Thickness Code No. Feautures
Base Metal Oilless Type
FC250
Graphite		 20 SESF Excellent sliding performance at low load and medium speed.
20 SESFT
SS400 Copper Powder sintering 20 SOX Excellent sliding performance at low /
medium load and medium speed.With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited.
20 SOXT
S45C 10 TWX
10 TWXT
Copper alloy Graphite 20 SESW Excellent in load resistance and wearExcellent sliding performance at high load and low speed.resistance. Good performance is shown in reciprocating and frequent starts and stops.
20 SESWT
10 TWP
10 TWPT
5 UWP
Steel (S45C) Graphite 20 FRP Since the surface hardness is HRC40 or more, it is excellent in wear resistance.
Steel (SKS3) 20 TSP Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance.
