INW-S45C Bronze Bimetal Bearings ISO 3547 Type X Type Oil Groove
INW-S45C Bronze Bimetal Bearings ISO 3547 Type X Type Oil Groove
Specifications
Brand Name :
INWAY
Model Number :
JF-805
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Application :
Engine Bearing
Size :
Standard
Standard :
DIN1494
Material :
Steel+CuSn6Ni9
Type :
X type
Technical :
Wrapped Bronze
Description

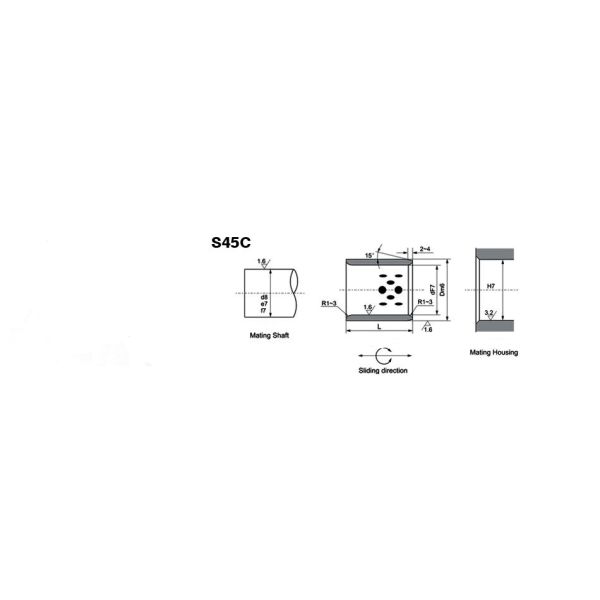

INW-S45C Bronze Bimetal Bearings ISO 3547 DIN1494 Standard Type with X oil groove

JF-S45C Sliding layer can be machined with lubricating grooves and/or with grease indents

Very good corrosion resistance

Steel+CuSn6Ni9


The main applications are in Automotive and Industrial products.

Automotive: McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial: Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and tramways, textile machinery, valves, etc.
Bimetal Bushings‘ applications for King pin, Spring eyes, Trunion, Piston pin, Rocker arm, Connecting rod, Transmission system, Distributor, Clutch, pilot, Starter, Generator, Oil pump, gear pump, Water pump, Cam shaft, Intermediate shaft, Balance shaft.
Bimetal Washers’ applications for Main bearing, Cam shaft, Crank shaft, Distributor, Transmission system, Oil pump, Ram pump, vane pump and other applications.
Engine Bearings’ application for Cam shaft, Crank (main), Con. Rod (big end) and other applications of engine bearing.

Basic Feature

INW-S45C is the Steel backed bronze alloy lined bearing material, the work surface can be produced the oil groove if requested which can improve the oil giving system. Characteristic compare with the traditional steel bushes this structure provides the material have lower friction, excellent wear resistance, higher temp. can bear etc. . Now the bearings have been succeed in the high speed mold & Die industries.

INW-S45C Bronze Bimetal Bearings ISO 3547 Type X Type Oil Groove

Technical Parameter

Max. Load Static 250N/mm2
Dynamic 100N/mm2
Max. Speed Dry 0.5 m/s
Oil 1.0 m/s
Max. PV 3.25 N/mm2 * m/s
Hardness HB > 210
Temp. -100 ℃ ∼ +300 ℃
Friction coefficient 0.03 ∼ 0.20
Thermal conductivity 60W (m*k) -1
Coefficient of thermal expansion 19 * 10-6 K-1
Yield point 150 N/mm2

  • s.

INW-S45C Bronze Bimetal Bearings ISO 3547 Type X Type Oil Groove

Tech. Data
Max.Load Static 250N/mm² Alloy Hardness HB 60-100
140N/mm²
Temp -40℃~+250℃
Coefficient of friction 0.05~0.12
Max.Speed Max.Speed 2.5m/s Thermal conductivity 60W(m*k)-1
Max.PV Max.PV 2.8N/mm²*m/s
Shear strength Shear strength 170N/mm²
Coef.of yhermal exoansion 14*10-6K-1
