Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification
Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification
Specifications
Brand Name :
INWAY
Model Number :
JF-720
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Application :
Track Roller
Size :
Standard
Standard :
DIN1494
Material :
Steel +CuPb24Sn4
Type :
Oil groove
Technical :
Wrapped Bronze
Description

Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification

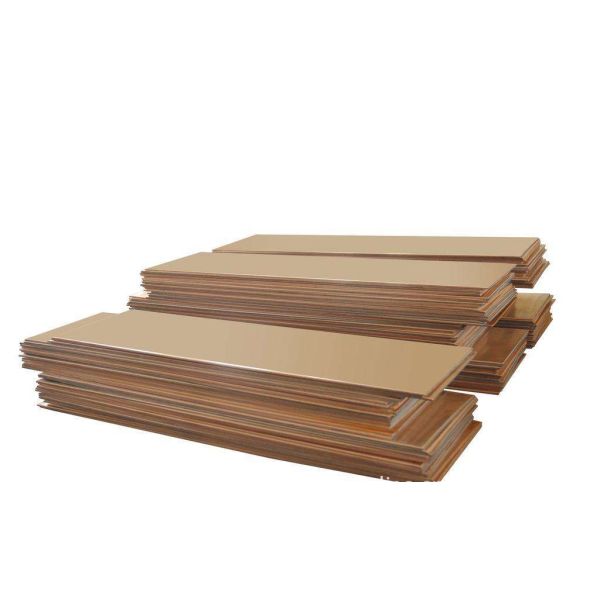

JF-720 is a bimetal bearing with steel back and sintered CuPb24Sn4 as lining.This type has fairly good performance in anti-fatigue and heavy load capacity.It is suitable for middle speed and middle load.When soft alloy is plated on the bushing surface and with oil lubrication,it can be applied in high-speed internal combustion engine and connect-rod.

Lead bronze alloy CuPb24Sn4 Temperature Max 170℃
Load capacity 38N/mm² Harderness alloy HB45~70

Features:

  1. Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
  2. Sintered bronze lazer: God wear resistance and excellent load carrying capacity.
  3. .Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification

Tech. Data
Max.Load Static 250N/mm² Alloy Hardness HB 60-100
140N/mm²
Temp -40℃~+250℃
Coefficient of friction 0.05~0.12
Max.Speed Max.Speed 2.5m/s Thermal conductivity 60W(m*k)-1
Max.PV Max.PV 2.8N/mm²*m/s
Shear strength Shear strength 170N/mm²
Coef.of yhermal exoansion 14*10-6K-1

Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification

Bronze Bimetal Bearings CuPb24Sn4 DIN1494 Standard Type ISO9001 Certification
