SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
Specifications
Brand Name :
INWAY
Model Number :
SNG71
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Material :
Bronze
Type :
Flange
Size :
Standard Size,Customizable
Product name :
brass bush,Sleeve Bearing
Features :
Low Resistance,Long Operating Life,Maintenance,High precision
Lubricating :
Oilless
Description

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing

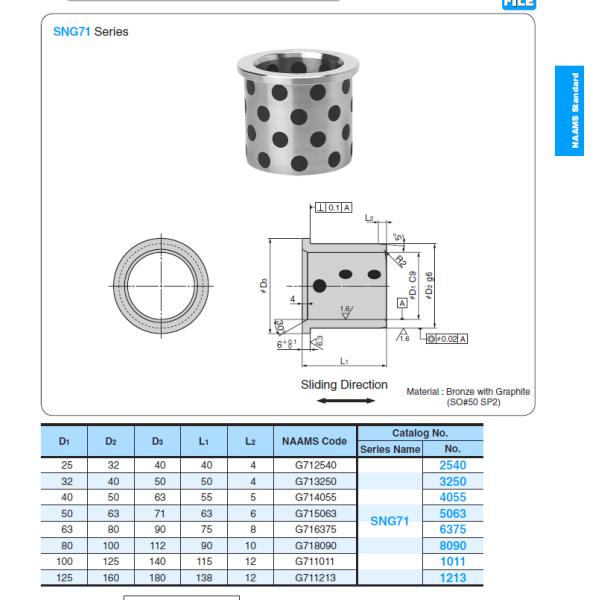

NAAMS Standard SNG71 guide bushing, european standard, SO#50SP2 with graphite

SNG61 guide bushings consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.

Under technical dry running conditions, the bearing surface is designed with thick running-in film which
enables the solid lubricant to be transferred to the counter material at the first contact.

* Solid Lubricating Bearing, Material: Bronze Alloy SO#50SP2 + Graphite

* Description:
Material: Bronze Alloy SO#50SP2 + Graphite
Hardness: >250HB
Self-lubricating & Maintenance-free

* Features
High load capacity, very good wear and abrasion resistance, moderate corrosion resistance, hardened mating material favorable. Special suitable for toggle mechanism bushing in injection molding machines.

* Possible Application
The product is widely used in ctontinuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on.

* Available Types
Cylindrical bush, flanged bush, washer, strip...

* Standard Parts

Type Straight Bushing Material Steel or Bronze+Graphite
I.D. d(mm) 6 O.D. D(mm) 10
Maximum Allowable PV Value(N/mm2•m/s) 1.65 Maximum Allowable Load(N/mm2) 29
Temperature Range(℃)

-40~150

 Guide Elements Products

Bronze with Non-Liquid Lubricant

Thrust Washers,Oilless Guide Bushes,Retaining Plates,Guide Bars

Note:

Bushes can be used with radial or axial motion.Matching guide combinations, see selection matrix at the beginning of chapter D.Assembly guide lines / Dimensional requirements and tolerances at the end of chapter D.

  • Introduction of material

1.The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2.The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.

3.Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.

  • Features and advantages

1.Insensitive to dirty environment
2.Resistant to shock loads and vibrations at slow speeds
3.Enable operation with a poor shaft surface finish
4.Good resistance to corrosive conditions

  • Material

Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability. All surfaces of the solid bronze bushings are machined.
Solid iron bushings and plates are made in same way of bronze material, but it is much lower costs if you are not in high performance requirements.

  • Examples of applications

1.Construction machinery
2.Transport equipment
3.Pulp and papermaking machinery
4.Off-shore equipment

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
