Specifications
Brand Name :
OEM
Model Number :
PTFE PLAIN BEARINGS
Certification :
CUSN8,CUSN6.5 Bronze
Place of Origin :
CHINA
MOQ :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 Piece/ per Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden cases standard export package
Price :
Negotiation
Material :
EP Series Material structural
Type :
Sliding, Sleeve POLYMER BEARINGS
Quality :
OEM
Customize :
std. products
Size :
welcome customized sizes
Applications :
Electronic Products, Office Machinery
Description

VSB-70 Plastic Plain Bearings​

ID=10mm

OD=12mm

Length= 11mm

Flange size : 18mm

Color= Dark grey

ID=10mm

OD=12mm

Length= 6mm

Flange size= 18mm

Color= Dark grey

ID=12mm

OD=14mm

Length= 11mm

Flange size= 20mm

Color= Dark grey

Shopping at viiplus self-lubricating bearings online bronzegleitlager.com Fast Delivery Small minimum order value
Direct CAD DownloadFree samples,Free Consultation
Cost down, service life up with plastics for moving applications High-performance motion plastics
Non-Metallic Self-lubricating Bearings plastics bearings POLYMER BEARINGS

VIIPLUS Bearing Technologies. Your recognised global partner for sliding bearing applications. Working together to create solutions for the most demanding bearing applications.
VIIPLUS RANGE OF Engineered Plastics Materials

Solid Polymer Bearing & Engineered Plastic Bearings | VIIPLUS Bushings

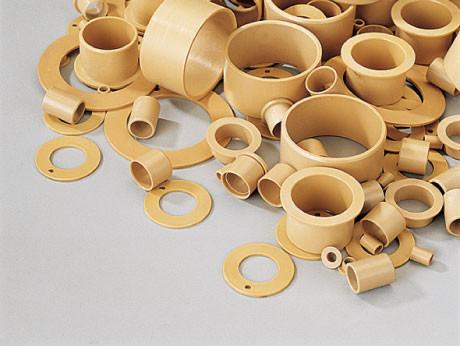

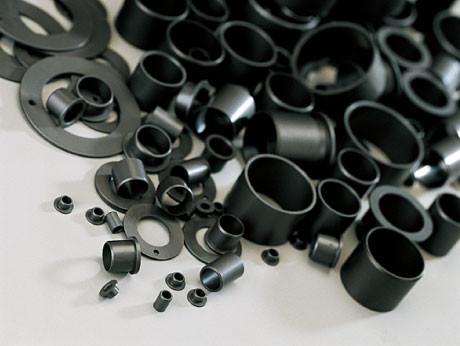

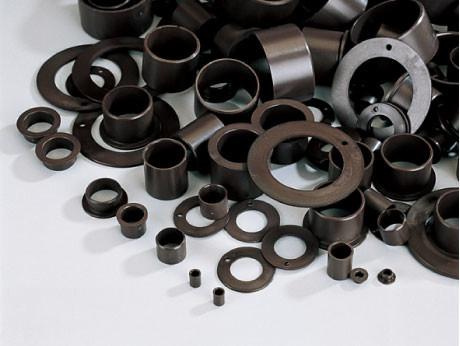

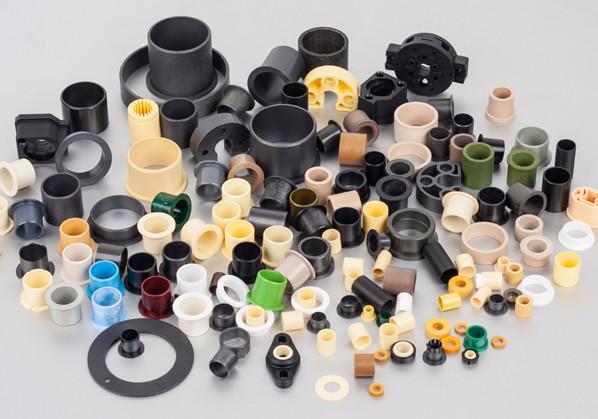

Plastic Bearings


can be manufactured in many different types of plastic material to suit various applications, has a good combination of properties, including low moisture absorption, good dimensional stability, and low friction

Engineered plastics out of thermoplastic bearing material are processed by injection moulding. This production method enables us to produce unlimited dimensions in accordance to our standard, and also parts with special designs and features.

Plastic self-lubricating bearings

EP series of high-performance engineering plastic polymer bearings as the base material, through modification of polymer materials technology into high-strength fibers and specialty solid improvement in its internal grease integrated wear resistance; high strength fiber reinforced network structure strength of the material, the composite solid special grease allows EP series plastic bearings with excellent self-lubricating properties and wear resistance. Whether it is a high durability requirements the automotive industry.
Plastic Compound Bearings

Features


VSB-70 EP series material is a thermal mould character plastic processed by crystal engineering plastic as basic material with proper intensifier and lubricant. The rigidity and high temperature engineer capability is greatly improved because of the use of intensifier, at the same time, the coefficient of thermal expansion, moulding shrinking rate and wriggle capability decreases, consequently, the size stability is improved, and EP series material range is enlarged and keeps the intrinsic anti-wear capability and anti-drug capability.

Common Capability

Unit

EPT

EPG

EPH

EPX

EPJ

EPS

Density

g/cm³

1.46

1.46

1.65

1.49

1.24

Color

Black gray

Dark grey

Grey

Black

Yellow

Beige

Max.water absorption,23℃/ 50%

[% weight]

0.2

0.7

0.1

0.3

2.02

Max.water absorption

[% weight]

＜1.2

＜4

＜0.3

＜0.5

＜1.3

＜0.1

Dynamic friction /steel

μ

0.05-0.15

0.08-0.18

0.07-0.20

0.09-0.27

0.06-0.18

0.05-0.15

Max.PV(dry)

MPa•m/s

0.4

0.5

1.37

1.32

0.34

0.4

Mechanical behavior

E-module

MPa

2,300

7,800

12,500

8,100

2,400

830

Tensile strength,20℃

MPa

80

200

175

170

73

18

Compressive strength

MPa

65

80

90

150

35

10

Max.static pressure of the surface,20℃

MPa

35

80

150

90

20

10

Shore D hardness

70

112

87

85

74

73

Physical and thermal properties

Continuous work tempreature

℃

+80

+130

+200

+250

+90

+260

short-time work tempreature

℃

+120

+220

+240

+315

+120

+310

Minimum operating temperature

℃

-40

-40

-40

-100

-50

-200

Thermal conductivity

W/m•K

0.2

0.25

0.60

0.60

0.25

0.24

Max.water absorption,23℃

K-1•10-5

7

9

4

5

10

12

Conductivity

Volume resisticity

Ωcm

＞1012

＞1013

＜104

＜105

＞1013

＞1015

Surface resisticity

Ω

＞1015

＞1011

＜105

＜103

＞1012

＞1015

Technical data

Max. load

Static

N/mm2

Dynamic

180N/mm2

Max. speed

Dry

0.5m/s

Lubrication

>1m/s

Max. PV (Dry)

Short-time

1N/mm2*·m/s

Continuous

0.8N/mm2*·m/s

Temp.

-40℃~+80℃

Friction coefficient

0.05~0.20

Thermal conductivity

0.2W (m·k)-1

Coefficient of thermal expansion

10-1*k-1

Typical Applications
· Office Machinery
· Electronic Products
· Textile Machinery
· Fitness Machinery
· Agricultural Machinery
· Packaging Machinery
· Automotive Industry

VSB-70 Plastic Plain Bearings
