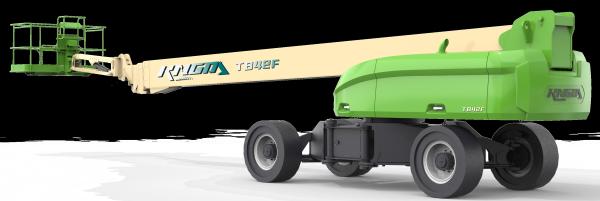

42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift
Specifications
Brand Name :
KINGDA
Model Number :
TB42F
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Gradeability :
45%
Platform Height :
42m
Description

Diesel Telescopic Boom Lift Platform Height 42m

Product Features

1. The medium and large diesel telescopic boom lift stands out as a robust and flexible powerhouse designed to conquer towering heights.

2. When pitted against its counterparts, this behemoth of a machine dwarfs them in size, running on the formidable energy of diesel fuel.

3. Sporting a telescopic arm, it possesses the unique ability to stretch and shrink, granting it the freedom to ascend to various altitudes with ease.

4. In the realms of construction, maintenance, and industry, this imposing figure reigns supreme, showcasing its prowess in a multitude of settings.

5. With a diesel engine roaring within, this beast boasts unrivalled strength to hoist weighty burdens and navigate through the terrain with finesse. 6. Its solid construction and unwavering reliability empower workers to ascend to lofty realms with utmost safety and efficiency.

42m Platform Height Diesel Telescopic Boom Lift For Skid Steer Stafflift

Model TB42F
Size Metric
Maximum Working Height 43.66m
Maximum Platform Height 41.66m
Maximum Horizontal Outreach 23.66m
Platform Size 2.2×0.8 m
Length 12.86m
Width 2.49m
Height-Stowed 3.05m
Wheelbase 4.12m
Ground Clearance 0.38m
Performance
Maximum Lifting Capacity/(Non-restricted) 454Kg/300Kg
Platform Rotation 160°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.8Km/h
Drive Speed-Raised 0.8Km/h
Gradeability 35%
Maximum Working Slope 5°
Tire Size 445/65-24
Power
Power Supply CUMMINS QSF2.8 54kW
Fuel Tank Capacity 152L
Weight
Machine Weight 21350Kg
Standard Compliance
EN280 GB25849

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
