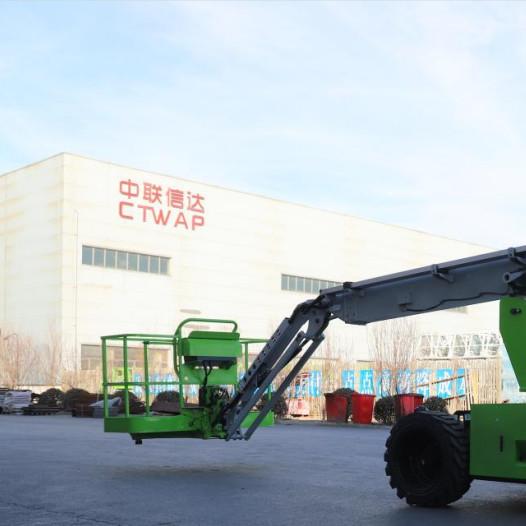

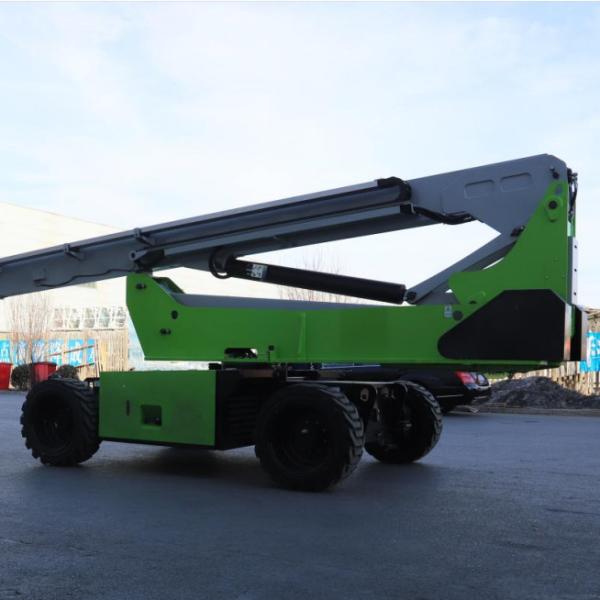

46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
Specifications
Brand Name :
KINGDA
Model Number :
TB46J
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Load Capacity :
480kg
Turntable Rotation :
360 degrees continuous
Description

Diesel Telescopic Boom Lift Platform 46m Horizontal Outreach 24m

Product Features

1. A medium-large size diesel telescopic boom lift is not just your average high-reaching machine.

2. Unlike its smaller counterparts, this beast is powered by diesel fuel, giving it the strength to tackle the toughest tasks with ease.

3. With its telescopic arm that can extend and retract, it's like the superhero of the construction world, effortlessly reaching towering heights that others can only dream of.

4. This mighty machine is designed for heavy-duty work, capable of hoisting hefty loads with precision and power.

5. Its robust build exudes strength and reliability, providing a secure platform for workers to fearlessly conquer tasks at dizzying heights.

6. In a league of its own, this diesel telescopic boom lift stands tall, ready to take on any challenge that comes its way.

46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m

Model TB46J
Size Metric
Maximum Working Height 48m
Maximum Platform Height 46m
Maximum Horizontal Outreach 24m
Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) 13.66m/17.8m
Width(axle retracted/extended) 2.5m/4.21m
Height-Stowed 3.14m
Wheelbase 3.96m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.2Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius-inside(axle retracted/extended) 3.83m/2.69m
Turning Radius-outside(axle retracted/extended) 6.24m/6.5m
Drive &Steer Mode 4×4×4
Tyre Size 445/65-24
Power
Power Supply 55Kw@2400rpm~2600rpn
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 250L
Control Voltage 12V
Weight
Machine Weight 23110Kg
Standard Compliance EN280 GB25849

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.

Company Profile

JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin City, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.

46m Platform Diesel Boom Lift Platform Horizontal Outreach 24m
