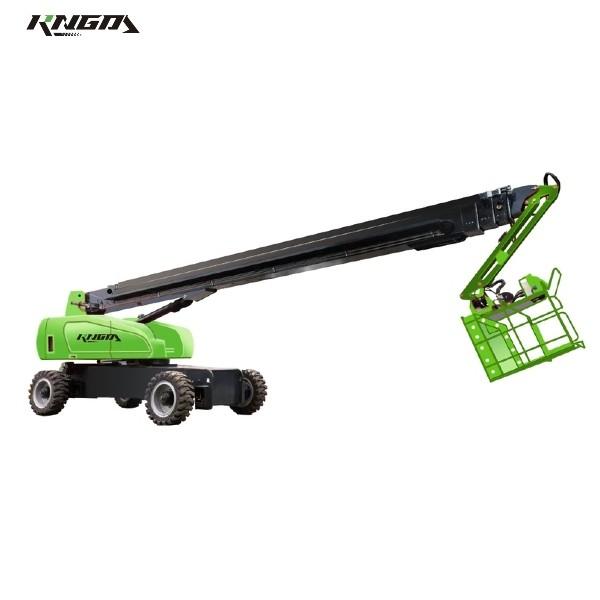

42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
42m Height Platform Diesel Telescopic Boom Lift Rotation 360°
Specifications
Brand Name :
KINGDA
Model Number :
TB42J
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Gradeability :
45%
Working Height :
44m
Description

Diesel Telescopic Boom Lift Platform 42m Turntable Rotation 360°

Product Features

1. A Diesel Telescopic Boom Lift of Medium Large Proportions is a mighty contraption designed for ascension to lofty realms.

2. Unlike its modest counterparts, this beast thrives on the potent elixir of diesel fuel, granting it the strength to conquer great heights.

3. Sporting a lengthy arm capable of both extension and retraction, this marvel of engineering possesses the versatility to venture where others dare not tread.

4. Its robust frame and formidable power render it a veritable titan, ideal for the most demanding of undertakings.

5. Found prowling construction sites, warehouses, and various industrial domains, this behemoth stands ready to defy gravity and conquer the skies, a towering testament to human ingenuity and ambition.

42m Height Platform Diesel Telescopic Boom Lift Rotation 360°

Model TB42J
Size Metric
Maximum Working Height 44m
Maximum Platform Height 42m
Maximum Horizontal Outreach 24m
Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) 13.3m/16.2m
Width(axle retracted/extended) 2.5m/4.1m
Height-Stowed 3.1m
Wheelbase 3.96m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.4Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius-inside(axle retracted/extended) 3.83m/2.69m
Turning Radius-outside(axle retracted/extended) 6.24m/6.5m
Drive &Steer Mode 4×4×4
Tire Size 385/65-22.5
Power
Power Supply 55Kw@2400rpm~2600rpn
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 250L
Control Voltage 12V
Weight
Machine Weight 22610Kg
Standard Compliance
EN280 GB25849

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.

Company Profile

JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin City, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
