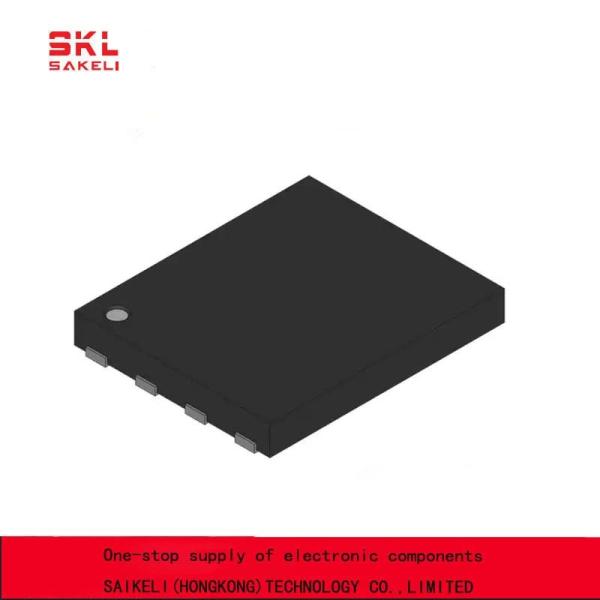

FDMC86520L MOSFET Power Electronics High Quality Advanced Features Optimal Performance
FDMC86520L MOSFET Power Electronics High Quality Advanced Features Optimal Performance
FDMC86520L MOSFET Power Electronics High Quality Advanced Features Optimal Performance
FDMC86520L MOSFET Power Electronics High Quality Advanced Features Optimal Performance
Specifications
Brand Name :
onsemi
Model Number :
FDMC86520L
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
60V
Mounting Type :
Surface Mount
Vgs (Max) :
±20V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

FDMC86520L MOSFET Power Electronics High Quality Advanced Features Optimal Performance

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60 V
Current - Continuous Drain (Id) @ 25°C
13.5A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
7.9mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id
3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
64 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
4550 pF @ 30 V
FET Feature
-
Power Dissipation (Max)
2.3W (Ta), 40W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-MLP (3.3x3.3)
Package / Case
8-PowerWDFN

The FDMC86520L is a high performance N-channel MOSFET power electronic device designed to provide maximum reliability and efficiency in a wide range of applications. This device features an advanced low-voltage trench structure and a low on-state resistance to increase efficiency and power dissipation. Its low gate charge and low threshold voltage make it ideal for high frequency applications.

The device is available in a small form factor package, making it ideal for space-constrained applications. It is also RoHS-compliant and features a high temperature rating for increased reliability. This device is suitable for use in a variety of applications, including switching power supplies, high-efficiency DC-DC converters, and motor control.
