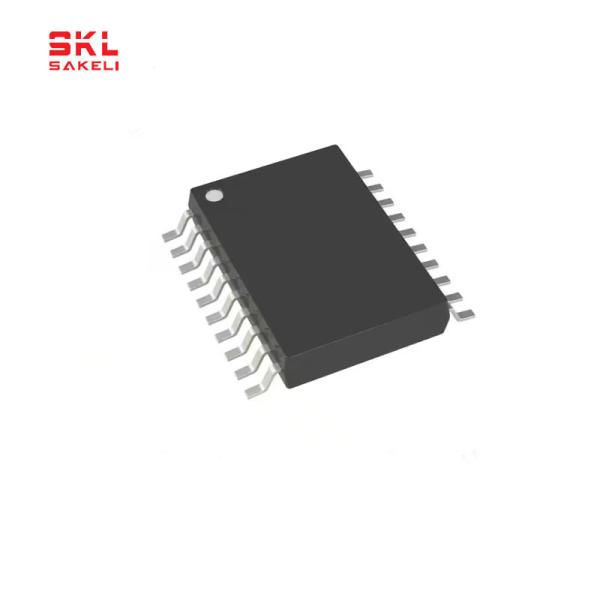

ADG734BRUZ-REEL7 Electronic Components IC Chips Low Voltage Triple Quad SPDT Switches
ADG734BRUZ-REEL7 Electronic Components IC Chips Low Voltage Triple Quad SPDT Switches
Specifications
Brand Name :
ADI / MAXIM
Model Number :
ADG734BRUZ-REEL7
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Product Status :
Active
Multiplexer/Demultiplexer Circuit :
2:1
On-State Resistance (Max) :
4.5Ohm
Voltage - Supply, Single (V+) :
1.8V ~ 5.5V
Voltage - Supply, Dual (V±) :
±2.5V
Switch Time (Ton, Toff) (Max) :
21ns, 10ns (Typ)
PN :
ADG734BRUZ-REEL7
Description

ADG734BRUZ-REEL7 Electronic Components IC Chips CMOS Low Voltage Triple Quad SPDT Switches Package 20-TSSOP

Product Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
4
On-State Resistance (Max)
4.5Ohm
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
1.8V ~ 5.5V
Voltage - Supply, Dual (V±)
±2.5V
Switch Time (Ton, Toff) (Max)
21ns, 10ns (Typ)
-3db Bandwidth
200MHz
Charge Injection
5pC
Channel Capacitance (CS(off), CD(off))
11pF
Current - Leakage (IS(off)) (Max)
100pA
Crosstalk
-67dB @ 1MHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
20-TSSOP
FEATURES
1.8 V to 5.5 V Single Supply
2.5 V Dual Supply
2.5  On Resistance
0.5  On Resistance Flatness
100 pA Leakage Currents
19 ns Switching Times
Triple SPDT: ADG733
Quad SPDT: ADG734
Small TSSOP and QSOP Packages
Low Power Consumption
TTL/CMOS Compatible Inputs
APPLICATIONS
Data Acquisition Systems
Communication Systems
Relay Replacement
Audio and Video Switching
Battery Powered Systems
