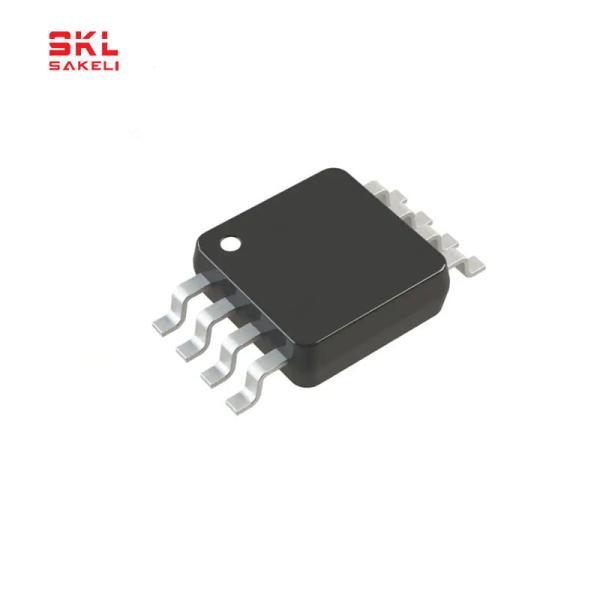

ADG719BRMZ-REEL7 Electronic Components low voltage CMOS single switch IC chip
ADG719BRMZ-REEL7 Electronic Components low voltage CMOS single switch IC chip
Specifications
Brand Name :
ADI / MAXIM
Model Number :
ADG719BRMZ-REEL7
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Multiplexer/Demultiplexer Circuit :
2:1
On-State Resistance (Max) :
4Ohm
Channel-to-Channel Matching (ΔRon) :
-
Voltage - Supply, Single (V+) :
1.8V ~ 5.5V
Voltage - Supply, Dual (V±) :
-
Switch Time (Ton, Toff) (Max) :
7ns, 3ns (Typ)
PN :
ADG719BRMZ-REEL7
Description

ADG719BRMZ-REEL7 Electronic Components IC Chip CMOS 1.8 V to 5.5 V 2.5 Ω 2:1 Mux SPDT Switch Package 8-MSOP

Product Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
4Ohm
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
1.8V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
7ns, 3ns (Typ)
-3db Bandwidth
200MHz
Charge Injection
-
Channel Capacitance (CS(off), CD(off))
7pF
Current - Leakage (IS(off)) (Max)
250pA
Crosstalk
-82dB @ 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package
8-MSOP

Title: ADG719BRMZ-REEL7 IC Chip

Brand: Analog Devices
Model: ADG719BRMZ-REEL7
Description: The ADG719BRMZ-REEL7 is a low-voltage, CMOS single-pole/single-throw (SPST) analog switch IC chip designed for various electronic applications.
Features:
Low on-resistance
Wide voltage range compatibility
Low power consumption
Fast switching speed
Low leakage current
Applications:
Audio and video signal routing
Data acquisition systems
Communication systems
Test and measurement equipment
Industrial automation
Specifications:
Number of Channels: 1
On-Resistance: Low
Voltage Range: Wide
Supply Voltage: Varies
Operating Temperature: Varies
Package: MSOP (Mini Small Outline Package)
Datasheet: Available on the Analog Devices website
