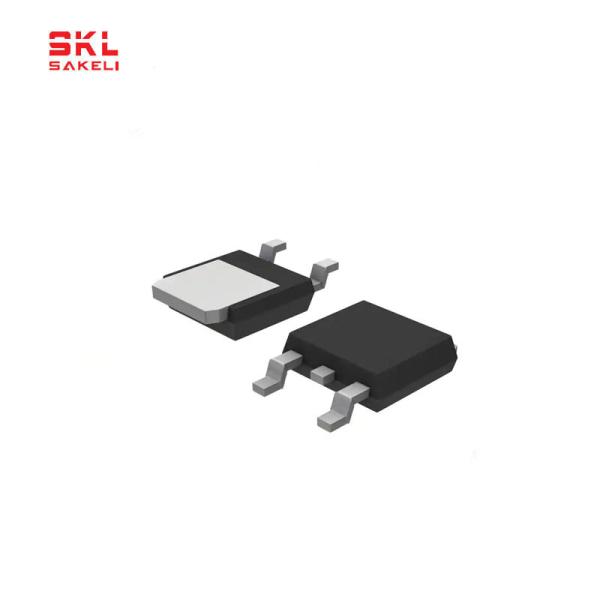

FDD86252 Mosfet Tube Ideal For High Speed Applications High Frequency Switching
FDD86252 Mosfet Tube Ideal For High Speed Applications High Frequency Switching
Specifications
Brand Name :
onsemi
Model Number :
FDD86252
Place of Origin :
Multi-origin
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-7days
Packaging Details :
Standard
Product Type :
MOSFET Power Electronics
Manufacturer :
onsemi
Manufacturer Product Number :
FDD86252
Description :
MOSFET N-CH 150V 5A/27A DPAK
Manufacturer Standard Lead Time :
1-7days
Detailed Description :
N-Channel 150 V 5A (Ta), 27A (Tc) 3.1W (Ta), 89W (Tc) Surface Mount TO-252AA
Description

FDD86252 MOSFET Power Electronics

The FDD86252 is a power MOSFET designed for high frequency switching applications. This device is highly efficient and has a wide range of operational temperature, making it suitable for a variety of demanding applications.

Features:


- Low RDS(ON) for low power losses
- Low gate charge for fast switching
- Low input capacitance for high-frequency switching
- High current rating for high-power applications
- Wide range of operating temperature
- RoHS compliant

Applications:


- DC-DC converters
- Switching regulators
- Motor control
- Power supplies
- Automotive applications

Product Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
150 V
Current - Continuous Drain (Id) @ 25°C
5A (Ta), 27A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
52mOhm @ 5A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
16 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
985 pF @ 75 V
FET Feature
-
Power Dissipation (Max)
3.1W (Ta), 89W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
TO-252AA
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Base Product Number
FDD862
