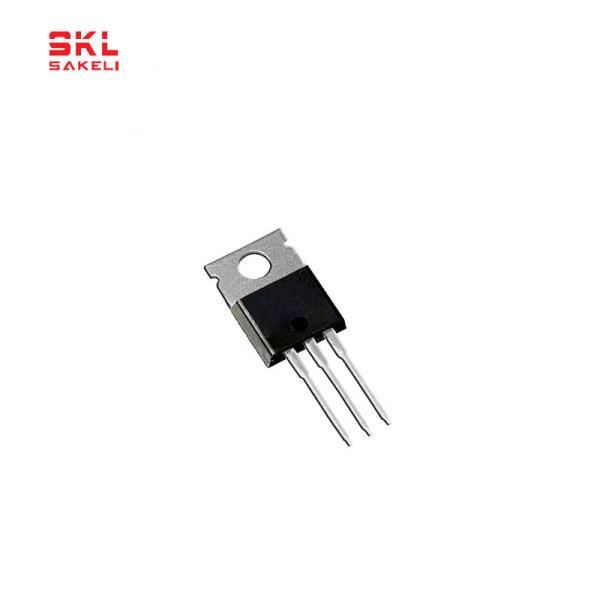

IRFB7546PBF Power Mosfet 100V 50A N-Channel Low RDS(On) Through Hole
IRFB7546PBF Power Mosfet 100V 50A N-Channel Low RDS(On) Through Hole
Specifications
Brand Name :
Infineon Technologies
Model Number :
IRFB7546PBF
Place of Origin :
Multi-origin
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-7days
Packaging Details :
Standard
Product Type :
MOSFET Power Electronics
Manufacturer :
Infineon Technologies
Manufacturer Product Number :
IRFB7546PBF
Description :
MOSFET N-CH 60V 75A TO220AB
Manufacturer Standard Lead Time :
1-7days
Detailed Description :
N-Channel 60 V 75A (Tc) 99W (Tc) Through Hole TO-220AB
Description

Product Listing:

IRFB7546PBF MOSFET Power Electronics

• Vds: 75V
• Id: 57A
• Rds(on): 0.100ohm
• Package: TO-220AB
• Mounting Type: Through Hole
• Configuration: Single
• FET Type: MOSFET N-Channel
• Transistor Polarity: N-Channel
• Maximum Drain Source Voltage: 75V
• Maximum Gate Source Voltage: 20V
• Maximum Drain Current: 57A
• Maximum Drain Source Resistance: 0.100ohm
• Power Dissipation: 115W
• Operating Temperature Range: -55°C to 175°C
• Brand: IRFB7546PBF

Product Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60 V
Current - Continuous Drain (Id) @ 25°C
75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
7.3mOhm @ 45A, 10V
Vgs(th) (Max) @ Id
3.7V @ 100µA
Gate Charge (Qg) (Max) @ Vgs
87 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
3000 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
99W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-220AB
Package / Case
TO-220-3
Base Product Number
IRFB7546

Why buy from us >>> Fast / Safely / Conveniently


• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>


• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>


• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

IRFB7546PBF Power Mosfet 100V 50A N-Channel Low RDS(On) Through Hole
