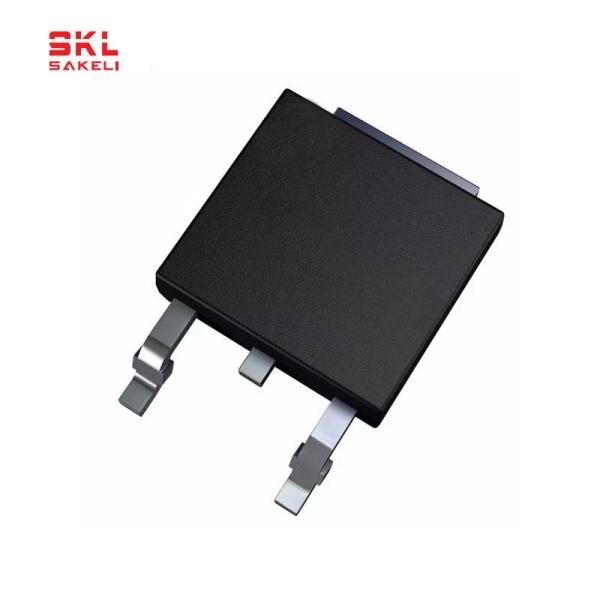

FCD2250N80Z MOSFET Power Electronics TO-252AA Package N-Channel SuperFET® II MOSFET 800V 2.6A
FCD2250N80Z MOSFET Power Electronics TO-252AA Package N-Channel SuperFET® II MOSFET 800V 2.6A
Specifications
Brand Name :
onsemi
Model Number :
FCD2250N80Z
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
800V
Mounting Type :
Surface Mount
Vgs (Max) :
±20V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

FCD2250N80Z MOSFET Power Electronics

TO-252AA Package N-Channel SuperFET® II MOSFET 800V 2.6A

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
800 V
Current - Continuous Drain (Id) @ 25°C
2.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
2.25Ohm @ 1.3A, 10V
Vgs(th) (Max) @ Id
4.5V @ 260µA
Gate Charge (Qg) (Max) @ Vgs
14 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
585 pF @ 100 V
FET Feature
-
Power Dissipation (Max)
39W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
TO-252AA
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63

Features


• RDS(on) = 1.8 Typ.)
• Ultra Low Gate Charge (Typ. Qg = 11 nC)
• Low Eoss (Typ. 1.1 uJ @ 400V)
• Low Effective Output Capacitance (Typ. Coss(eff.) = 51 pF)
• 100% Avalanche Tested
• RoHS Compliant
• ESD Improved Capability Applications
• AC - DC Power Supply • LED Lighting

Description


SuperFET® II MOSFET is Fairchild Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior switching performance, dv/dt rate and higher avalanche energy. Consequently, SuperFET II MOSFET is very suitable for the switching power applications such as Audio, Laptop adapter, Lighting, ATX power and industrial power applications.

Why buy from us >>> Fast / Safely / Conveniently



• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.


How to buy >>>



• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.


Service >>>


• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

FCD2250N80Z MOSFET Power Electronics TO-252AA Package N-Channel SuperFET® II MOSFET 800V 2.6A
