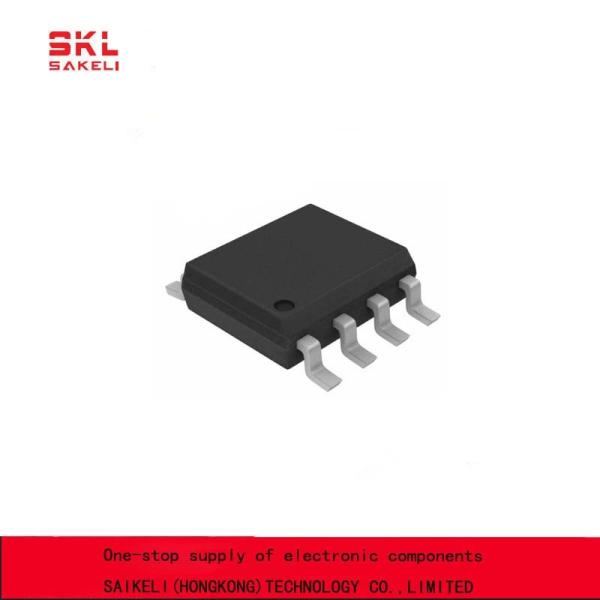

FDS6375 MOSFET Power Electronics 8-SOIC Package P-Channel 2.5V wide range of gate drive voltage
FDS6375 MOSFET Power Electronics 8-SOIC Package P-Channel 2.5V wide range of gate drive voltage
FDS6375 MOSFET Power Electronics 8-SOIC Package P-Channel 2.5V wide range of gate drive voltage
FDS6375 MOSFET Power Electronics 8-SOIC Package P-Channel 2.5V wide range of gate drive voltage
Specifications
Brand Name :
onsemi
Model Number :
FDS6375
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
P-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
20V
Mounting Type :
Surface Mount
Vgs (Max) :
±8V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

FDS6375 MOSFET Power Electronics 8-SOIC Package P-Channel 2.5V wide range of gate drive voltage

FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
20 V
Current - Continuous Drain (Id) @ 25°C
8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 4.5V
Rds On (Max) @ Id, Vgs
24mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id
1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
36 nC @ 4.5 V
Vgs (Max)
±8V
Input Capacitance (Ciss) (Max) @ Vds
2694 pF @ 10 V
FET Feature
-
Power Dissipation (Max)
2.5W (Ta)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)


General Description


This P-Channel 2.5V specified MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V – 8V).

Applications


· Power management

· Load switch

· Battery protection


Features

· –8 A, –20 V. RDS(ON) = 24 mW @ VGS = –4.5 V RDS(ON) = 32 mW @ VGS = –2.5 V

· Low gate charge (26 nC typical)

· High performance trench technology for extremely low RDS(ON)

· High current and power handling capability
