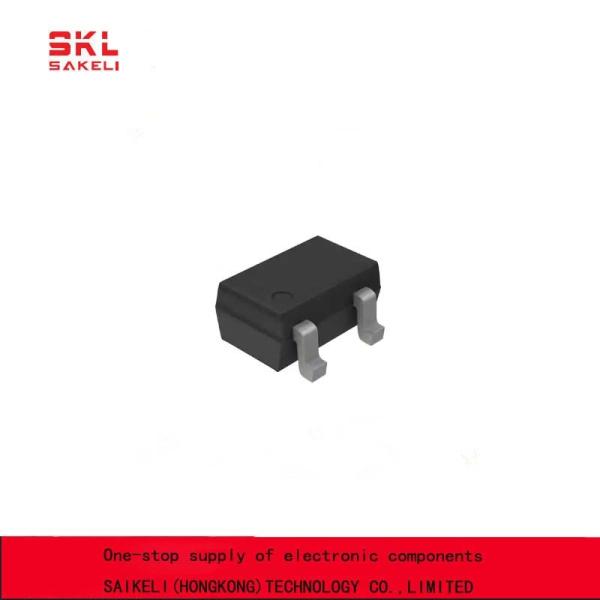

NVS4409NT1G MOSFET Power Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A
NVS4409NT1G MOSFET Power Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A
NVS4409NT1G MOSFET Power Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A
NVS4409NT1G MOSFET Power Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A
Specifications
Brand Name :
onsemi
Model Number :
NVS4409NT1G
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
25V
Mounting Type :
Surface Mount
Vgs (Max) :
±8V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

NVS4409NT1G MOSFET Power

Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
25 V
Current - Continuous Drain (Id) @ 25°C
700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)
2.7V, 4.5V
Rds On (Max) @ Id, Vgs
350mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id
1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
1.5 nC @ 4.5 V
Vgs (Max)
±8V
Input Capacitance (Ciss) (Max) @ Vds
60 pF @ 10 V
FET Feature
-
Power Dissipation (Max)
280mW (Tj)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
SC-70-3 (SOT323)
Package / Case
SC-70, SOT-323

Features

• Advance Planar Technology for Fast Switching, Low RDS(on)
• Higher Efficiency Extending Battery Life
• AEC−Q101 Qualified and PPAP Capable − NVS4409N
• These Devices are Pb−Free and are RoHS Compliant Applications
• Boost and Buck Converter
• Load Switch
• Battery Protection

Why buy from us >>> Fast / Safely / Conveniently



• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.


How to buy >>>



• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.


Service >>>


• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

NVS4409NT1G MOSFET Power Electronics SC-70-3 Package Single N‐Channel Small Signal ESD Protection 25V 0.75A
