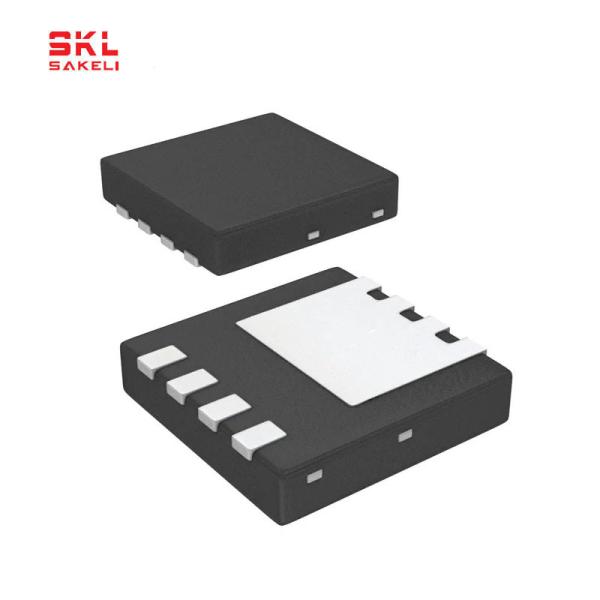

FDMC86102 MOSFET Power Electronics Power33 Package N-Channel Shielded Gate 100V 20A 24m
FDMC86102 MOSFET Power Electronics Power33 Package N-Channel Shielded Gate 100V 20A 24m
FDMC86102 MOSFET Power Electronics Power33 Package N-Channel Shielded Gate 100V 20A 24m
FDMC86102 MOSFET Power Electronics Power33 Package N-Channel Shielded Gate 100V 20A 24m
Specifications
Brand Name :
onsemi
Model Number :
FDMC86102
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
100V
Mounting Type :
Surface Mount
Vgs (Max) :
±20V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

FDMC86102 MOSFET Power Electronics Power33 Package N-Channel Shielded Gate 100V 20A 24m

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
7A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
24mOhm @ 7A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
18 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
965 pF @ 50 V
FET Feature
-
Power Dissipation (Max)
2.3W (Ta), 41W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
Power33
Package / Case
8-PowerTDFN

General Description

This N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that incorporates Shielded Gate technology. This process has been optimized for the on−state resistance and yet maintain superior switching performance.


Features

• Shielded Gate MOSFET Technology
• Max RDS(on) = 24 m at VGS = 10 V, ID = 7A
• Max RDS(on) = 38 m at VGS = 6 V, ID = 5 A
• Low Profile − 1 mm max in Power 33
• 100% UIL Tested
• This Device is Pb−Free, Halide Free and is RoHS Compliant

Applications


• DC−DC Conversion
