FDMC6679AZ Dual-Channel N-Channel Enhancement Mode MOSFET Power Electronics for High Efficiency Applications
FDMC6679AZ Dual-Channel N-Channel Enhancement Mode MOSFET Power Electronics for High Efficiency Applications
FDMC6679AZ Dual-Channel N-Channel Enhancement Mode MOSFET Power Electronics for High Efficiency Applications
FDMC6679AZ Dual-Channel N-Channel Enhancement Mode MOSFET Power Electronics for High Efficiency Applications
Specifications
Brand Name :
onsemi
Model Number :
FDMC6679AZ
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Drain to Source Voltage (Vdss) :
30 V
Current - Continuous Drain (Id) @ 25°C :
11.5A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On) :
4.5V, 10V
Rds On (Max) @ Id, Vgs :
10mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id :
3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs :
91 nC @ 10 V
Description
FDMC6679AZ Dual-Channel N-Channel Enhancement Mode MOSFET Power Electronics for High Efficiency Applications

Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
30 V
Current - Continuous Drain (Id) @ 25°C
11.5A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
10mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id
3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
91 nC @ 10 V
Vgs (Max)
±25V
Input Capacitance (Ciss) (Max) @ Vds
3970 pF @ 15 V
FET Feature
-
Power Dissipation (Max)
2.3W (Ta), 41W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount

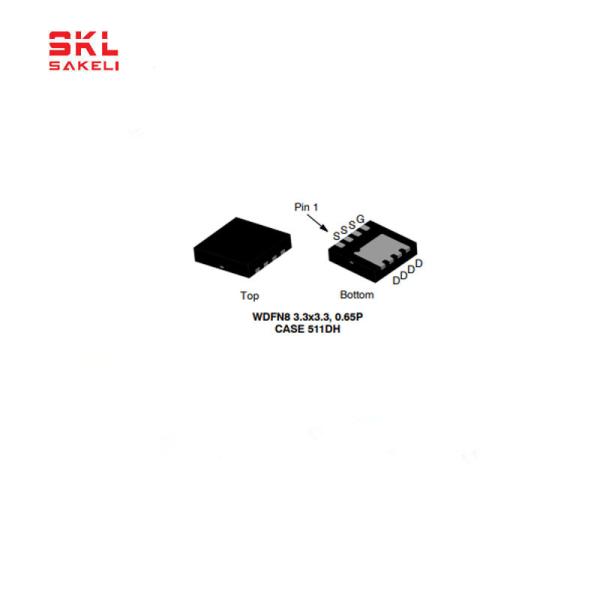

Supplier Device Package
8-MLP (3.3x3.3)

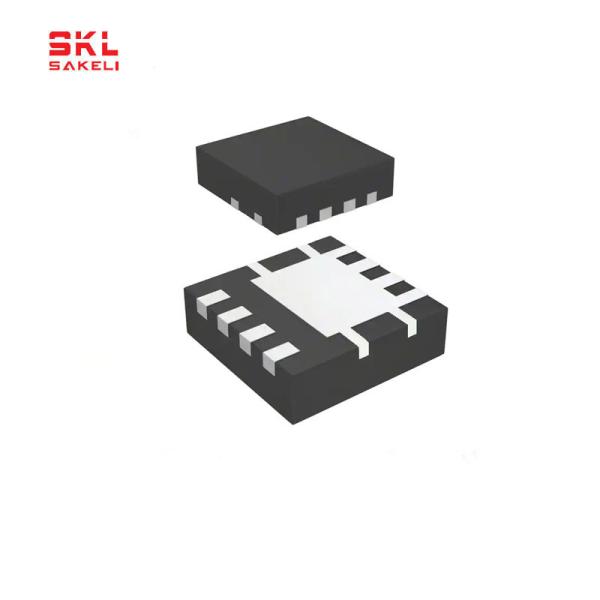

Package / Case
8-PowerWDFN

Product Listing:

Product Name: ON Semiconductor FDMC6679AZ N-Channel Power MOSFET

Product Description: The ON Semiconductor FDMC6679AZ N-Channel Power MOSFET is a fully-depleted, low-voltage, high-speed device that is designed to provide superior performance, reliability and low power consumption in a wide range of applications.

Product Features:
• N-Channel
• Low voltage operation
• High speed switching
• Low power consumption
• High current capacity
• High switching frequency
• Low gate charge
• High temperature operation
• Low on-state resistance
• RoHS compliant

Product Specifications:
• Voltage Rating: 20V
• Continuous Drain Current: 27A
• Maximum Drain Source Voltage: -30V
• Drain Source On Resistance: 0.0045Ω
• Gate Threshold Voltage: 2.5V
• Maximum Operating Temperature: 175°C
• Mounting Type: Surface Mount
• Package/Case: TO-252
