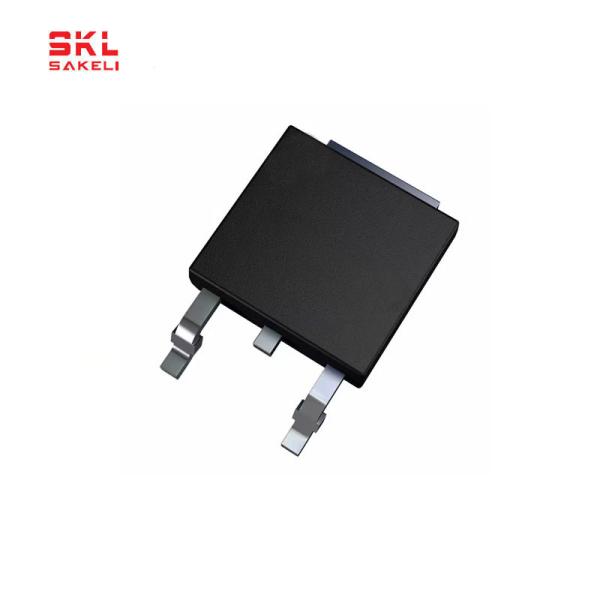

FDD3682 MOSFET Power Electronics Valve Train System N-Channel PowerTrench® 100V 32A 36mΩ
FDD3682 MOSFET Power Electronics Valve Train System N-Channel PowerTrench® 100V 32A 36mΩ
Specifications
Brand Name :
onsemi
Model Number :
FDD3682
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Drain to Source Voltage (Vdss) :
100 V
Current - Continuous Drain (Id) @ 25°C :
5.5A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On) :
6V, 10V
Rds On (Max) @ Id, Vgs :
36mOhm @ 32A, 10V
Vgs(th) (Max) @ Id :
4V @ 250µA
Vgs (Max) :
±20V
Description

N-Channel PowerTrench

P-Channel QFET® MOSFETFDD3682 MOSFET Power Electronics Valve Train System N-Channel PowerTrench® 100V 32A 36mΩ
-60 V, -12 A, 135 mΩ
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
5.5A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
36mOhm @ 32A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
28 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
1250 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
95W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
TO-252AA
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63

Features
• rDS(ON) = 32mΩ (Typ.), VGS = 10V, ID = 32A
• Qg(tot) = 18.5nC (Typ.), VGS = 10V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single Pulse and Repetitive Pulse)
• Qualified to AEC Q101

Applications
• DC/DC converters and Off-Line UPS
• Distributed Power Architectures and VRMs
• Primary Switch for 24V and 48V Systems
• High Voltage Synchronous Rectifier
• Direct Injection / Diesel Injection System
• 42V Automotive Load Control
• Electronic Valve Train System

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

FDD3682 MOSFET Power Electronics Valve Train System N-Channel PowerTrench® 100V 32A 36mΩ
