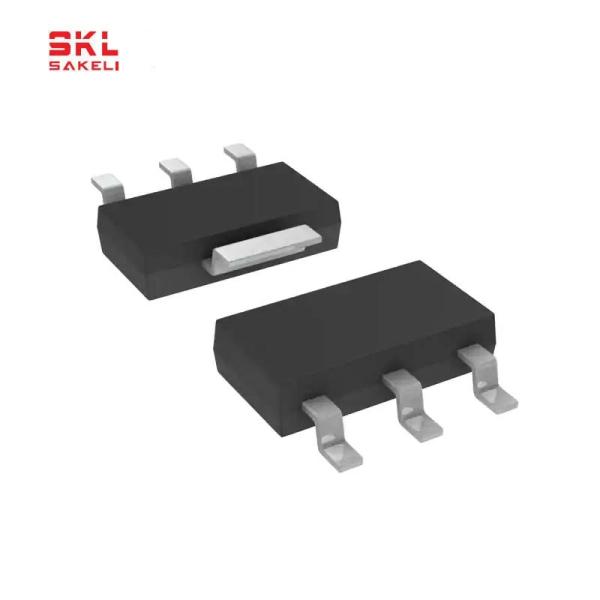

NVF2955T1G MOSFET Power Electronics SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control
NVF2955T1G MOSFET Power Electronics SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control
NVF2955T1G MOSFET Power Electronics SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control
NVF2955T1G MOSFET Power Electronics SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control
Specifications
Brand Name :
onsemi
Model Number :
NVF2955T1G
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
P-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
60V
Mounting Type :
Surface Mount
Vgs (Max) :
±20V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description

NVF2955T1G MOSFET Power Electronics

SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control

FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60 V
Current - Continuous Drain (Id) @ 25°C
2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
170mOhm @ 750mA, 10V
Vgs(th) (Max) @ Id
4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs
14.3 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
492 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
1W (Ta)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
SOT-223 (TO-261)
Package / Case
TO-261-4, TO-261AA


Features


• Design for low RDS(on)
• Withstands High Energy in Avalanche and Commutation Modes
• AEC−Q101 Qualified − NVF2955
• These Devices are Pb−Free and are RoHS Compliant Applications
• Power Supplies
• PWM Motor Control

• Converters
• Power Management

Why buy from us >>> Fast / Safely / Conveniently



• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.


How to buy >>>



• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.


Service >>>


• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

NVF2955T1G MOSFET Power Electronics SOT-223 Package Single P-Channel 60V 2.6A PWM Motor Control
