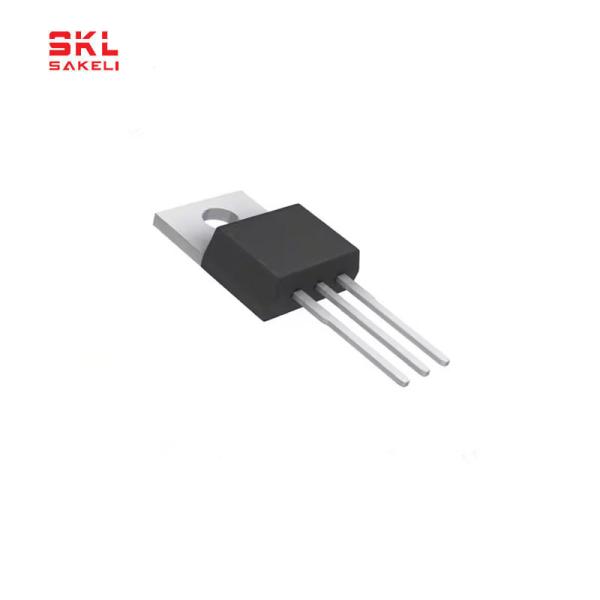

FQP33N10 MOSFET Power Electronics – High Power Switching Capability Low On-Resistance and Fast Switching Times
FQP33N10 MOSFET Power Electronics – High Power Switching Capability Low On-Resistance and Fast Switching Times
Specifications
Brand Name :
onsemi
Model Number :
FQP33N10
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Drain to Source Voltage (Vdss) :
100 V
Current - Continuous Drain (Id) @ 25°C :
33A (Tc)
Rds On (Max) @ Id, Vgs :
52mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id :
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs :
51 nC @ 10 V
Vgs (Max) :
±25V
Description

FQP33N10 MOSFET Power Electronics – High Power Switching Capability Low On-Resistance and Fast Switching Times

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
52mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
51 nC @ 10 V
Vgs (Max)
±25V
Input Capacitance (Ciss) (Max) @ Vds
1500 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
127W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-220-3
Package / Case
TO-220-3

Product Listing: ON Semiconductor FQP33N10 Power MOSFET

Product Features:

• Low RDS(ON) - 0.0043 Ohm
• Low Gate Charge - 9.8 nC
• Low Gate-Source Voltage - 1.8V
• Low On-State Resistance - 0.0043 Ohm
• High Speed Switching - 175V/nS
• High Current Capability - 10A
• Low Threshold Voltage - 1.2V
• Low Input Capacitance - 12 pF
• Low Output Capacitance - 9 pF
• High Avalanche Energy - 78 mJ
• High Peak Current - 30A
• Low EMI - 5dB

Why buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

FQP33N10 MOSFET Power Electronics – High Power Switching Capability Low On-Resistance and Fast Switching Times
