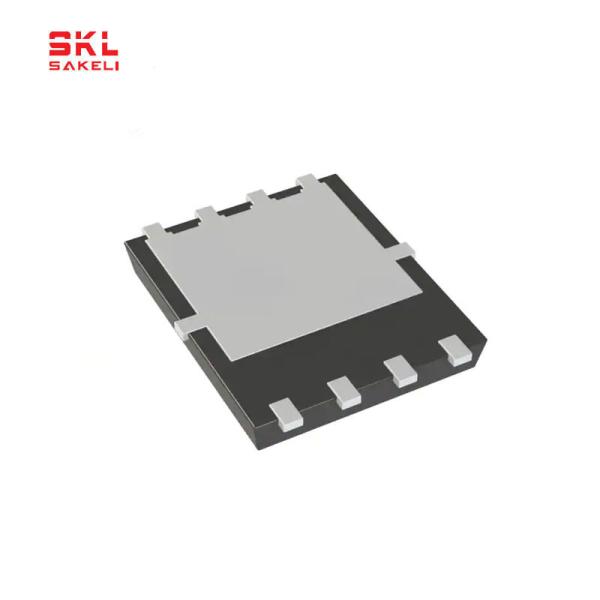

AON6278 MOSFET Power Electronics N-Channel 80V Surface Mount Switching Power Package 8-DFN
AON6278 MOSFET Power Electronics N-Channel 80V Surface Mount Switching Power Package 8-DFN
Specifications
Brand Name :
AOS
Model Number :
AON6278
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
Base Product Number :
AON62
Power Dissipation (Max) :
7.4W (Ta), 208W (Tc)
Input Capacitance (Ciss) (Max) @ Vds :
4646 pF @ 40 V
Gate Charge (Qg) (Max) @ Vgs :
86 nC @ 10 V
Drain to Source Voltage (Vdss) :
80 V
Drive Voltage (Max Rds On, Min Rds On) :
6V, 10V
Description

AON6278 MOSFET Power Electronics

N-Channel 80V Surface Mount Switching Power Package 8-DFN

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
80 V
Current - Continuous Drain (Id) @ 25°C
34A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
3.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
3.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
86 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
4646 pF @ 40 V
FET Feature
-
Power Dissipation (Max)
7.4W (Ta), 208W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-DFN (5x6)
Package / Case
8-PowerSMD, Flat Leads
Base Product Number
AON62

Product Details

General Description

The AON6278 uses trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON), Ciss and Coss. This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.

Why buy from us >>> Fast / Safely / Conveniently

• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>

• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>

• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

AON6278 MOSFET Power Electronics N-Channel 80V Surface Mount Switching Power Package 8-DFN
