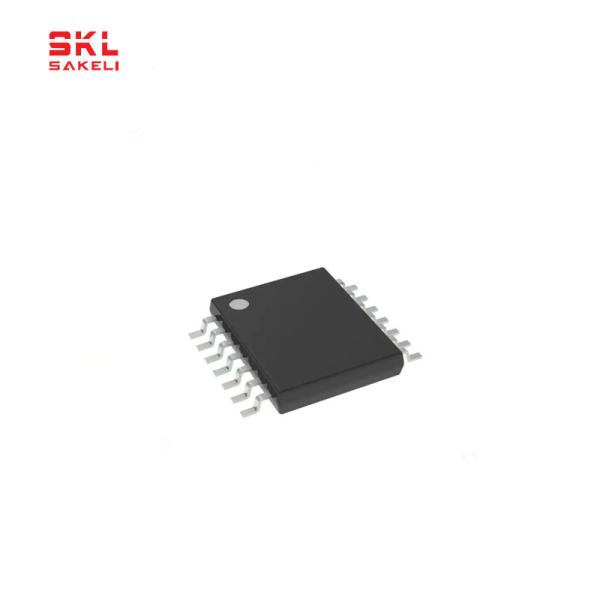

SN74LVC86APWR 4-Input XOR Gate IC Low-Power CMOS Logic Chip Package Case 14-TSSOP
SN74LVC86APWR 4-Input XOR Gate IC Low-Power CMOS Logic Chip Package Case 14-TSSOP
Specifications
Brand Name :
Texas Instruments
Model Number :
SN74LVC86APWR
Place of Origin :
Multi-origin
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-7days
Packaging Details :
Standard
Product Type :
Integrated Circuit IC Chip
Manufacturer :
Texas Instruments
Manufacturer Product Number :
SN74LVC86APWR
Desc6ription :
IC GATE XOR 4CH 2-INP 14TSSOP
Manufacturer Standard Lead Time :
1-7days
Detailed Description :
XOR (Exclusive OR) IC 4 Channel 14-TSSOP
Description

Product Name: SN74LVC86APWR Integrated Circuit IC Chip

Description: The SN74LVC86APWR is a quadruple 2-input XOR gate with Schmitt-trigger inputs designed for 1.65-V to 5.5-V VCC operation.

Features:


- Low-power consumption
- High-noise immunity
- Schmitt-trigger inputs
- Inputs are TTL-Voltage Compatible
- Outputs are Open Drain and Can be Connected to Other Open Drain Outputs to implement Active-Low Wired OR or Active-High Wired AND

Functions


- Available in Various Packages

Specifications:


- Supply Voltage: 1.65V to 5.5V
- Maximum Power Dissipation: 1.1W
- Operating Temperature Range: -40°C to +85°C
- Maximum Output Voltage: ±30V
- Maximum High Level Output Current: 8mA

Product Status
Active
Logic Type
XOR (Exclusive OR)
Number of Circuits
4
Number of Inputs
2
Features
-
Voltage - Supply
1.65V ~ 3.6V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
24mA, 24mA
Input Logic Level - Low
0.7V ~ 0.8V
Input Logic Level - High
1.7V ~ 2V
Max Propagation Delay @ V, Max CL
4.4ns @ 3.3V, 50pF
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Supplier Device Package
14-TSSOP
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Base Product Number
74LVC86

Why buy from us >>> Fast / Safely / Conveniently


• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>


• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>


• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

SN74LVC86APWR 4-Input XOR Gate IC Low-Power CMOS Logic Chip Package Case 14-TSSOP
