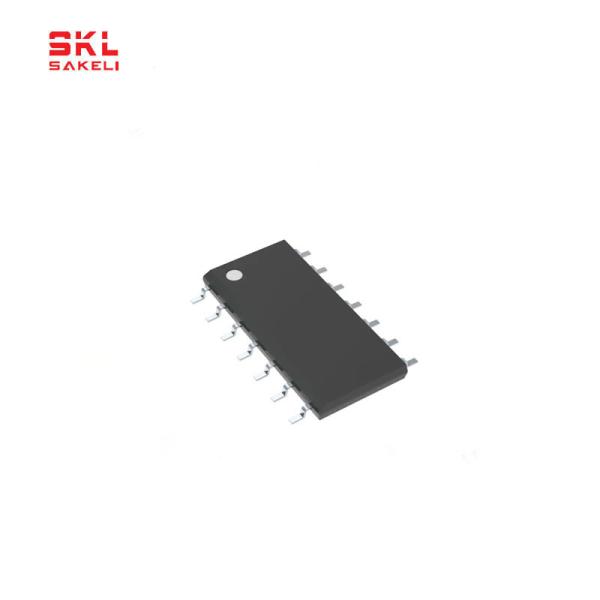

SN74HC04DR Quadruple Inverters IC Chip TTL Logic ICs With Open Drain Outputs
SN74HC04DR Quadruple Inverters IC Chip TTL Logic ICs With Open Drain Outputs
Specifications
Brand Name :
Texas Instruments
Model Number :
SN74HC04DR
Place of Origin :
Multi-origin
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-7days
Packaging Details :
Standard
Product Type :
Integrated Circuit IC Chip
Manufacturer :
Texas Instruments
Manufacturer Product Number :
SN74HC04DR
Desc6ription :
IC INVERTER 6CH 1-INP 14SOIC
Manufacturer Standard Lead Time :
1-7days
Detailed Description :
Inverter IC 6 Channel 14-SOIC
Description

SN74HC04DR Hex Inverting Buffer/Converter

Product Description:

The SN74HC04DR is a hex inverting buffer/converter with open-drain outputs. It has TTL-compatible inputs and can be used to convert from TTL to an open-drain or CMOS output. This device provides high-impedance inputs, allowing it to be used for buffering and level shifting.

Features:


- Low-power consumption
- TTL-compatible inputs
- Open-drain outputs
- High-impedance inputs
- High noise-immunity
- High-speed operation
- High-current outputs
- Available in small-outline packages

Specifications:


- Supply Voltage: 2.0V to 6.0V
- Maximum Input Voltage: 7.0V
- Output Voltage: 0.5V (max)
- Output Current: 10mA (max)
- Operating Temperature Range: -40°C to 85°C
- Package: SOIC-14

Product Status
Active
Logic Type
Inverter
Number of Circuits
6
Number of Inputs
1
Features
-
Voltage - Supply
2V ~ 6V
Current - Quiescent (Max)
2 µA
Current - Output High, Low
5.2mA, 5.2mA
Input Logic Level - Low
0.5V ~ 1.8V
Input Logic Level - High
1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL
16ns @ 6V, 50pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Package / Case
14-SOIC (0.154", 3.90mm Width)
Base Product Number
74HC04
