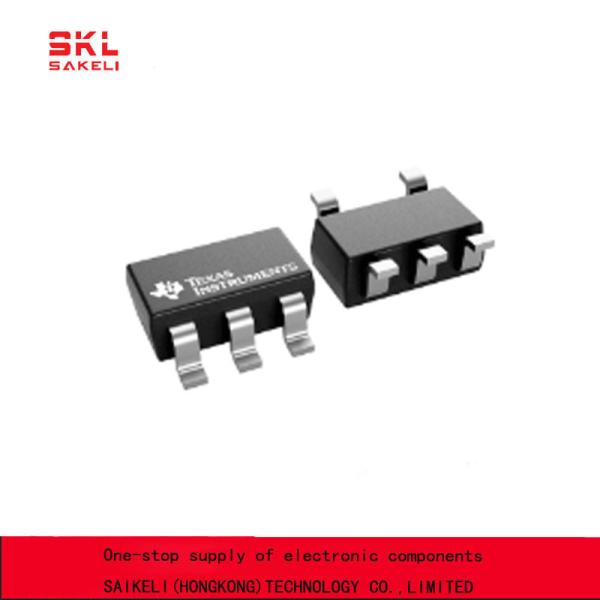

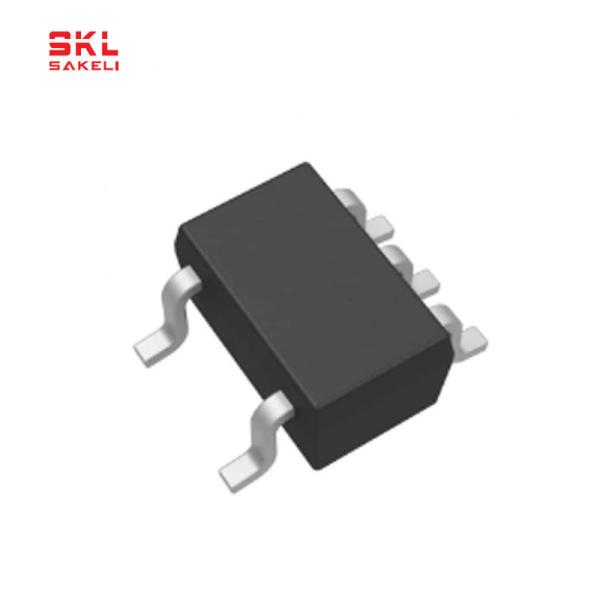

SN74AUP1G08DCKR IC Chip Single 0.8V To 3.6V Low Power AND Gate Logic ICs
SN74AUP1G08DCKR IC Chip Single 0.8V To 3.6V Low Power AND Gate Logic ICs
SN74AUP1G08DCKR IC Chip Single 0.8V To 3.6V Low Power AND Gate Logic ICs
SN74AUP1G08DCKR IC Chip Single 0.8V To 3.6V Low Power AND Gate Logic ICs
Specifications
Brand Name :
TI
Model Number :
SN74AUP1G08DCKR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
Number of Channels :
1
Package / Case :
SC-70-5
Operating Temperature :
-40°C ~85°C
Voltage - Supply Span (Min) :
0.8 V
Voltage - Supply Span (Max) :
3.6 V
Series :
74AUP
PN :
SN74AUP1G08DCKR
Description

SN74AUP1G08DCKR Integrated Circuit IC

Chip Single 0.8V To 3.6V Low Power AND Gate Logic ICs Package SC-70-5

SN74AUP1G08DCKR

Category Logic ICs/Gates
Low Level Range (VIL) 0.7V~0.9V
High Level Range (VIH) 1.6V~2V
Series 74AUP
Operating Temperature -40℃~+85℃
Quiescent Current (Max) 500nA
Supply Voltage 0.8V~3.6V
Source Current 4mA
Number of Channels 1
Propagation Delay Time 6.2ns@3.3V,30pF
Logic Gate Type And
Sink Current 4mA

SN74AUP1G08DCKR Features

  • Available in the Ultra Small 0.64 mm2 Package
  • (DPW) With 0.5-mm Pitch
  • Low Static-Power Consumption:
  • ICC = 0.9 µA Maximum
  • Low Dynamic-Power Consumption:
  • Cpd = 4.3 pF Typical at 3.3 V
  • Low Input Capacitance: Ci = 1.5 pF Typical
  • Low Noise: Overshoot and Undershoot <10% of VCC
  • Ioff Supports Live Insertion, Partial-Power-Down
  • Mode, and Back Drive Protection
  • Schmitt-Trigger Action Allows Slow Input
  • Transition and Better Switching Noise Immunity at
  • the Input (Vhys = 250 mV Typical at 3.3 V)
  • Wide Operating VCC Range of 0.8 V to 3.6 V
  • Optimized for 3.3-V Operation
  • 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
  • tpd = 4.3 ns Maximum at 3.3 V Suitable for Point-to-Point Applications
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
  • 2000-V Human-Body Model
  • (A114-B, Class II)
  • 1000-V Charged-Device Model (C101)
  • Description for the SN74AUP1G08
  • This single 2-input positive-AND gate is designed for 0.8-V to 3.6-V VCC operation and performs the Boolean function Y = A • B or Y = A + B in positive logic.
